具有电源正常指示和使能功能的 250mA、低压降稳压器 8-VSSOP -40 to 125
The LP3997 regulator is designed to meet the requirements of portable, battery-powered systems, providing accurate output voltage, low noise, and low quiescent current. The LP3997 provides 3.3V output at up to 250mA load current. The chip architecture is capable of providing output voltages as low as 0.8V. When switched in shutdown mode, the power consumption is virtually zero.
The LP3997 is designed to be stable with space saving ceramic output capacitor as small as 1µF.
The LP3997 also includes an out-of-regulation error flag. When the output is more than 5% below its nominal voltage, the error flag sets to low. If a capacitor is connected to device’s delay pin, a delayed power-on reset signal will be generated.
输出接口数 1
输入电压DC 6.00V max
输出电压 3.3 V
输出电流 250 mA
供电电流 100µA ~ 150µA
静态电流 0.055 mA
输出电容类型 Ceramic
跌落电压 0.14V @250mA
调节输出数 1
输入电压Max 6 V
输入电压Min 2 V
输出电压Min 3.3 V
输出电流Max 0.25 A
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±3 %
输入电压 ≤6 V
安装方式 Surface Mount
引脚数 8

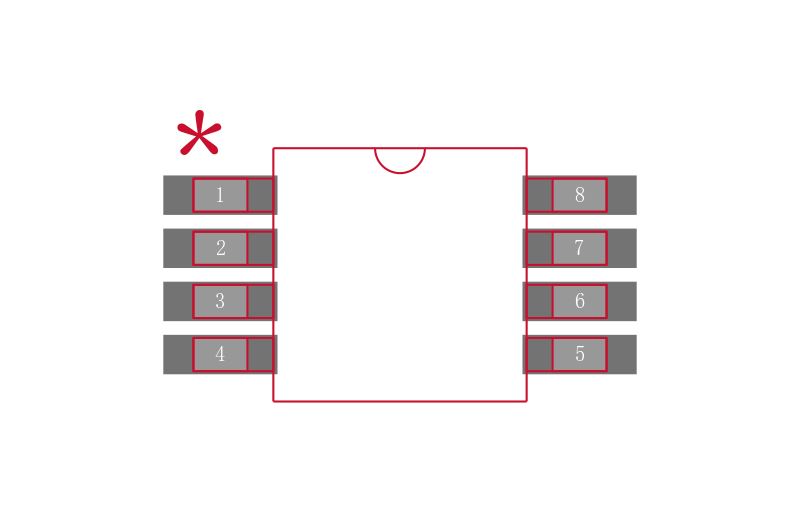

封装 VSSOP-8
封装 VSSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LP3997MM-3.3/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP3997MMX-3.3/NOPB 德州仪器 | 完全替代 | LP3997MM-3.3/NOPB和LP3997MMX-3.3/NOPB的区别 |
LP3997MM-3.3 德州仪器 | 类似代替 | LP3997MM-3.3/NOPB和LP3997MM-3.3的区别 |
