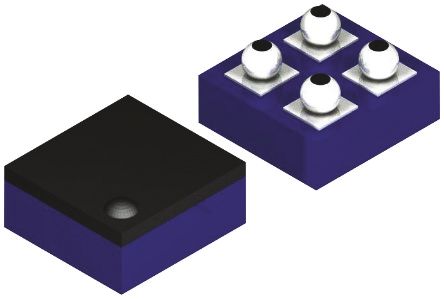

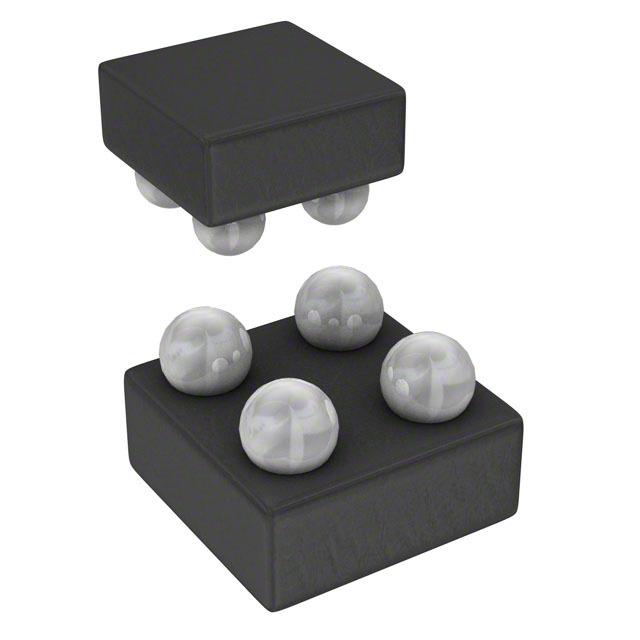

LD39130SJ12R

LDO（低压降）线性电压调节器，STMicroelectronics，250mA 至 500mA### LDO（低压降）线性电压调节器，STMicroelectronics低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

LDO（低压降）线性稳压器，STMicroelectronics，250mA 至 500mA

得捷:
IC REG LIN 1.2V 300MA 4FLIPCHIP

欧时:
### LDO（低压降）线性电压调节器，STMicroelectronics，250mA 至 500mA### LDO（低压降）线性电压调节器，STMicroelectronics低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

贸泽:
低压差稳压器 300mA current Linear Reg IC

e络盟:
固定电压稳压器, LDO, 1.4V至5.5V, 300mV压差, 1.2V输出, 300mA输出, Flip-Chip-4

艾睿:
Stable voltages are always needed for sensitive systems implement this LDO LD39130SJ12R linear regulator from STMicroelectronics. Its typical dropout voltage at current is 0.3@300mA V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.3 A. With a small input voltage of 1.4 V and a max of 5.5 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 1.2 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 1.5% and line regulation of 0.5%/V. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.

安富利:
LDO Regulator Pos 1.2V 0.3A 4-Pin Flip-Chip T/R

富昌:
LD39130S 系列 1.2V 0.3A 极低 瞬态电流 线形 稳压器-Flip-Chip4

Chip1Stop:
LDO Regulator Pos 1.2V 0.3A 4-Pin Flip-Chip T/R

Verical:
LDO Regulator Pos 1.2V 0.3A 4-Pin Flip-Chip T/R
