LM4040D30QDBZRG4

精密微功耗并联型电压基准 PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE

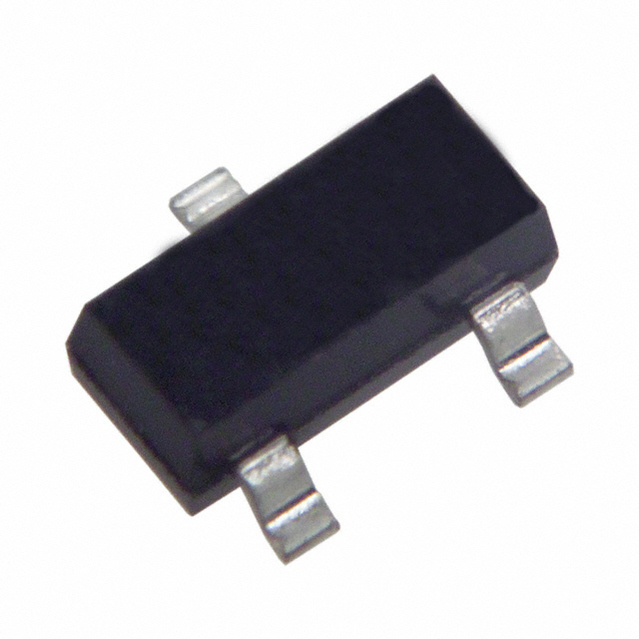

Shunt Voltage Reference IC ±1% SOT-23-3

得捷:
IC VREF SHUNT 1% SOT23-3

立创商城:
并联 15mA

贸泽:
参考电压 3-V Precision Micpwr Shunt 1% acc

艾睿:
V-Ref Precision 3V 15mA 3-Pin SOT-23 T/R

安富利:
The LM4040 series of shunt voltage references are versatile, easy-to-use references that cater to a vast array of applications. The 2-pin fixed-output device requires no external capacitors for operation and is stable with all capacitive loads. Additionally, the reference offers low dynamic impedance, low noise, and low temperature coefficient to ensure a stable output voltage over a wide range of operating currents and temperatures. The LM4040 uses fuse and Zener-zap reverse breakdown voltage trim during wafer sort to offer four output voltage tolerances, ranging from 0.1% max for the A grade to 1% max for the D grade. Thus, a great deal of flexibility is offered to designers in choosing the best cost-to-performance ratio for their applications.Packaged in space-saving SC-70 and SOT-23-3 packages and requiring a minimum current of 45 pA typ, the LM4040 also is ideal for portable applications. The LM4040xl is characterized for operation over an ambient temperature range of -40°C to 85°C. The LM4040xQ is characterized for operation over an ambient temperature range of -40°C to 125°C.

Verical:
V-Ref Precision 3V 15mA Automotive 3-Pin SOT-23 T/R

德州仪器TI:
Fixed voltage, 45-µA, precision micropower shunt voltage reference
