LP2950 -N / LP2951 -N系列的可调微功耗电压调节器 LP2950-N/LP2951-N Series of Adjustable Micropower Voltage Regulators
Use this LDO linear regulator from Texas Instruments to vary your voltage levels to your desired level. Its typical dropout voltage at current is 0.05@100uA|0.38@100mA V. It has an overall accuracy of ±0.5Typ %. This voltage regulation device"s single output can produce a current up to 0.1 A. The best way to provide power to your application is by using this, which needs a voltage lower than 30 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 0.1% and line regulation of 0.1%. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive. The maximum dropout voltage is 0.08@100uA|0.45@100mA V.
输出接口数 1
输出电压 3.3 V
输出电流 100 mA
供电电流 120µA ~ 14mA
静态电流 0.075 mA
输出电容类型 Ceramic
跌落电压 380 mV
调节输出数 1
输入电压Max 30 V
输入电压Min 2.3 V
输出电压Min 3.3 V
输出电流Max 0.1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.5 %
输入电压 30 V
安装方式 Surface Mount

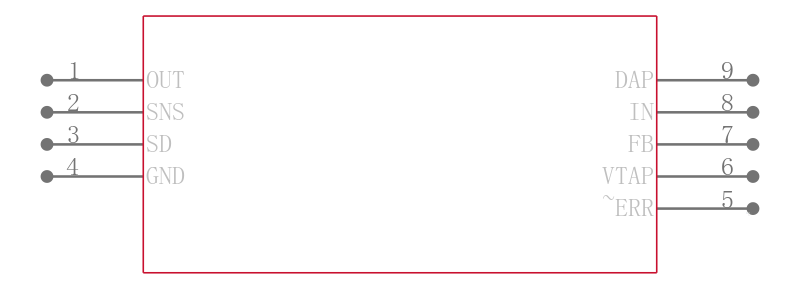

引脚数 8

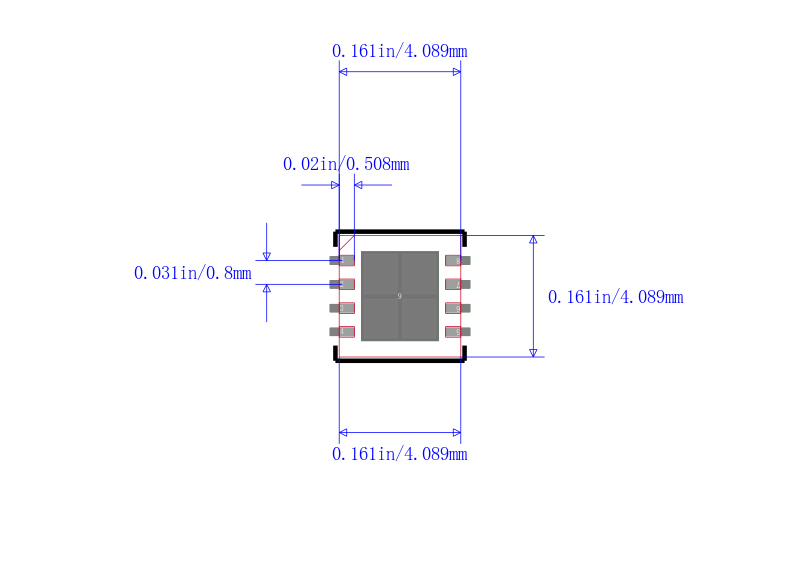

封装 WDFN-8
封装 WDFN-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP2951ACSDX-3.3/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP2951ACSDX-3.3 德州仪器 | 类似代替 | LP2951ACSDX-3.3/NOPB和LP2951ACSDX-3.3的区别 |
LP2951ACSD-3.3/NOPB 德州仪器 | 类似代替 | LP2951ACSDX-3.3/NOPB和LP2951ACSD-3.3/NOPB的区别 |
