LP3996SDX-2533/NOPB

LP3996SDX-2533/NOPB图片1
LP3996SDX-2533/NOPB图片2
LP3996SDX-2533/NOPB图片3
LP3996SDX-2533/NOPB图片4
LP3996SDX-2533/NOPB图片5
LP3996SDX-2533/NOPB图片6
LP3996SDX-2533/NOPB概述

低压差稳压器 Dual Linear Regulator with 300mA and 150mA Outputs and Power-On-Reset 10-WSON

PMIC - 稳压器 - 线性 正 固定 输出 150mA,300mA 10-WSON(3x3)


得捷:
IC REG LINEAR 2.5V/3.3V 10WSON


贸泽:
低压差稳压器 Dual Linear Regulator with 300mA and 150mA Outputs and Power-On-Reset 10-WSON


艾睿:
LDO Regulator Pos 2.5V3.3V 0.15A/0.3A 10-Pin WSON EP T/R


安富利:
LDO Regulator Pos 2.5V3.3V 0.15A/0.3A 10-Pin LLP EP T/R


Chip1Stop:
LDO Regulator Pos 2.5V3.3V 0.15A/0.3A 10-Pin WSON EP T/R


Verical:
LDO Regulator Pos 2.5V3.3V 0.15A/0.3A 10-Pin WSON EP T/R


LP3996SDX-2533/NOPB中文资料参数规格
技术参数

输出接口数 2

输出电流 150mA, 300mA

静态电流 35.0 µA

输出电容类型 Ceramic

跌落电压 0.21V @300mA

调节输出数 2

输入电压Max 6 V

输入电压Min 2 V

工作温度Max 85 ℃

工作温度Min -40 ℃

输入电压 2V ~ 6V

封装参数

安装方式 Surface Mount

引脚数 10

封装 WSON-10

外形尺寸

封装 WSON-10

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

LP3996SDX-2533/NOPB引脚图与封装图

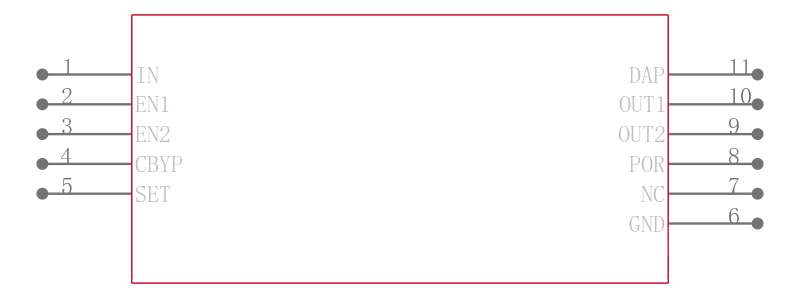

LP3996SDX-2533/NOPB引脚图
LP3996SDX-2533/NOPB封装图
LP3996SDX-2533/NOPB封装焊盘图
在线购买LP3996SDX-2533/NOPB
型号: LP3996SDX-2533/NOPB
制造商: TI 德州仪器
描述:低压差稳压器 Dual Linear Regulator with 300mA and 150mA Outputs and Power-On-Reset 10-WSON
替代型号LP3996SDX-2533/NOPB
型号/品牌 代替类型 替代型号对比

LP3996SDX-2533/NOPB

TI 德州仪器

当前型号

当前型号
