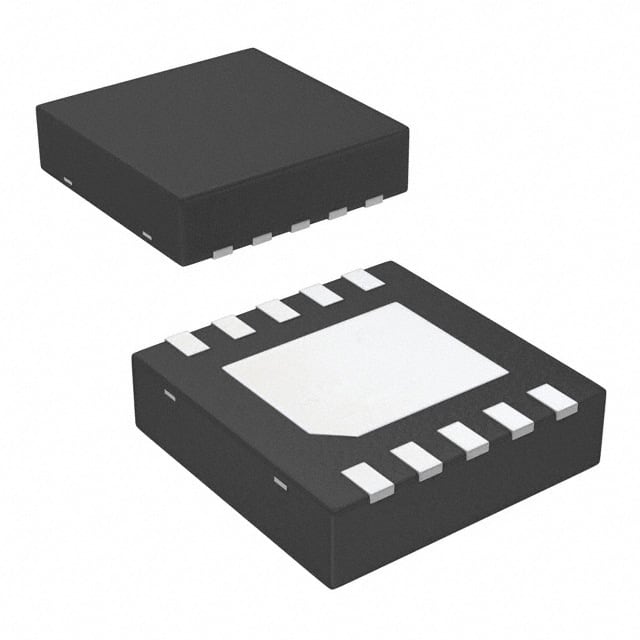

具有电源正常指示和使能功能的 150mA、低 IQ、双通道低压降稳压器 10-WSON
PMIC - 稳压器 - 线性 正 固定 2 输出 150mA,300mA 10-WSON(3x3)
得捷:
IC REG LINEAR 2.5V/3.3V 10WSON
立创商城:
LP3996SD-2533/NOPB
德州仪器TI:
150-mA, low-IQ, dual-channel low-dropout voltage regulator with power good & enable
艾睿:
Stable voltages are always needed for sensitive systems implement this LDO LP3996SD-2533/NOPB linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.11@150mA|0.21@300mA V. It has an overall accuracy of ±2.5 %. This voltage regulation device&s;s 2 outputs can produce a current up to 0.15Min|0.3Min A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2 V that does not exceed 6 V. With a fixed output that has a voltage of 2.5|3.3 V, this is power management at its best. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This voltage regulation device has an operating temperature range of -40 °C to 85 °C. The maximum dropout voltage is 0.22@150mA|0.55@300mA V. Its polarity is positive.
安富利:
LDO Regulator Pos 2.5V3.3V 0.15A/0.3A 10-Pin LLP EP T/R
Chip1Stop:
LDO Regulator Pos 2.5V3.3V 0.15A/0.3A 10-Pin WSON EP T/R
Verical:
LDO Regulator Pos 2.5V3.3V 0.15A/0.3A 10-Pin WSON EP T/R
输出接口数 2
输出电流 150mA, 300mA
供电电流 100µA ~ 170µA
静态电流 0.035 mA
输出电容类型 Ceramic
跌落电压 0.11V @150mA,0.21V @300mA
调节输出数 2
输入电压Max 6 V
输入电压Min 2 V
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±2.5 %
输入电压 2V ~ 6V
安装方式 Surface Mount
引脚数 10
封装 WFDFN-10
封装 WFDFN-10
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP3996SD-2533/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP3996SDX-2533/NOPB 德州仪器 | 功能相似 | LP3996SD-2533/NOPB和LP3996SDX-2533/NOPB的区别 |
