LDO(低压降)线性稳压器,双输出,Texas Instruments### LDO(低压降)线性稳压器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
LDO(低压降)线性稳压器,双输出,Texas Instruments
### LDO(低压降)线性稳压器,Texas Instruments
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LINEAR 1.5V/2.5V 10WSON
立创商城:
LP3996SD-1525/NOPB
德州仪器TI:
150-mA, low-IQ, dual-channel low-dropout voltage regulator with power good & enable
欧时:
Texas Instruments LP3996SD-1525/NOPB 双 LDO 稳压器, 1.5 V,2.5 V输出, 300mA最大输出, ±2.75%精确度
贸泽:
低压差稳压器 Dual Linear Regulator with 300mA and 150mA Outputs and Power-On-Reset 10-WSON -40 to 85
艾睿:
This LDO LP3996SD-1525/NOPB linear regulator from Texas Instruments acts like a variable resistor to maintain a steady voltage level. It has an overall accuracy of ±2.75 %. Its typical dropout voltage at current is 0.11@150mA|0.21@300mA V. This voltage regulation device&s;s 2 outputs can produce a current up to 0.15Min|0.3Min A. With a small input voltage of 2 V and a max of 6 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 1.5|2.5 V, this is power management at its best. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C. Its polarity is positive. The maximum dropout voltage is 0.22@150mA|0.55@300mA V.
Verical:
LDO Regulator Pos 1.5V2.5V 0.15A/0.3A 10-Pin WSON EP T/R
DeviceMart:
IC REG LDO 1.5V/2.5V 10-LLP
容差 ±4 %
输出接口数 2
输出电流 150mA, 300mA
供电电流 100µA ~ 170µA
通道数 2
静态电流 35.0 µA
输出电容类型 Ceramic
跌落电压 0.11V @150mA,0.21V @300mA
调节输出数 2
输入电压Max 6 V
输入电压Min 2 V
输出电流Max 300 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±2.75 %
输入电压 2V ~ 6V
安装方式 Surface Mount
引脚数 10

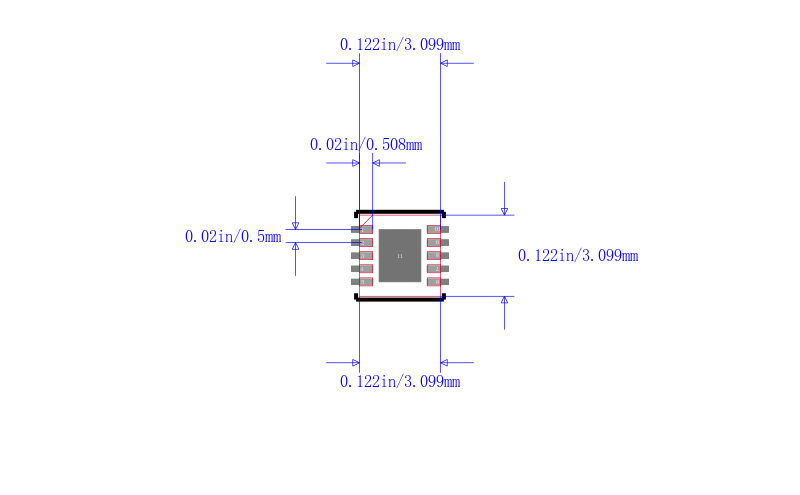

封装 WSON-10
长度 3 mm
宽度 3 mm
高度 0.8 mm
封装 WSON-10
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP3996SD-1525/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP3996SD-1525 德州仪器 | 完全替代 | LP3996SD-1525/NOPB和LP3996SD-1525的区别 |
LP3996SDX-1525/NOPB 德州仪器 | 功能相似 | LP3996SD-1525/NOPB和LP3996SDX-1525/NOPB的区别 |
