LM4040DEM3X-5.0

LM4040 -N / LM4040Q -N精密微功耗并联型电压基准 LM4040-N/LM4040Q-N Precision Micropower Shunt Voltage Reference

DESCRIPON

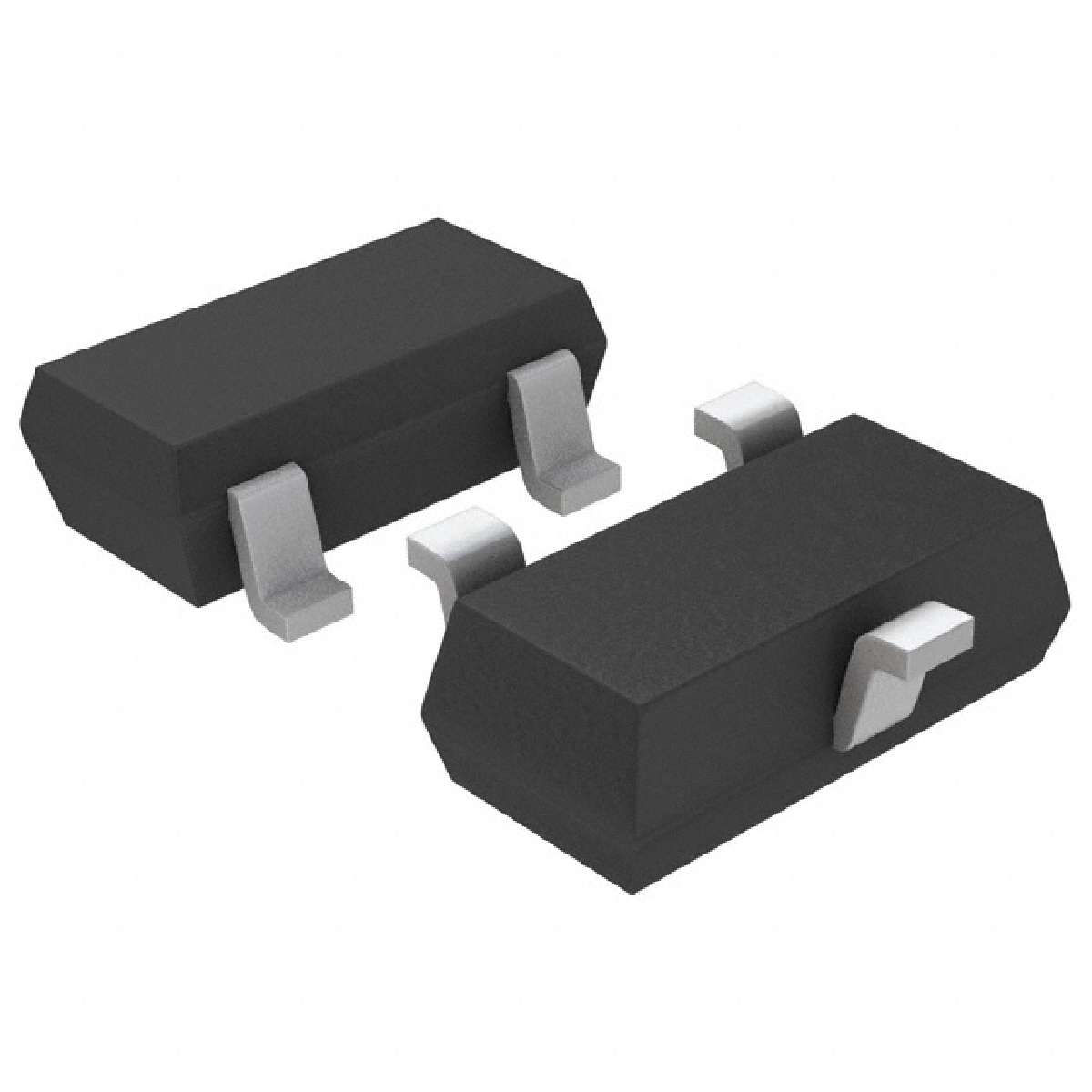

Ideal for space critical applications, the LM4040-N precision voltage reference is available in the subminiature SC70 and SOT-23 surface-mount package. The LM4040-N"s advanced design eliminates the need for an external stabilizing capacitor while ensuring stability with any capacitive load, thus making the LM4040-N easy to use. Further reducing design effort is the availability of several fixed reverse breakdown voltages: 2.048V, 2.500V, 3.000V, 4.096V, 5.000V, 8.192V, and 10.000V. The minimum operating current increases from 60 μA for the 2.5-V LM4040-N to 100 μA for the 10.0-V LM4040-N. All versions have a maximum operating current of 15 mA.

FEATURES

• 2.5V/SOT-23 AEC Q-100 Grades 1 and 3 available

• Small Packages: SOT-23, TO-92 and SC70

• No Output Capacitor Required

• Tolerates Capacitive Loads

• Fixed Reverse Breakdown Voltages of 2.048V, 2.500V,3.000V, 4.096V, 5.000V, 8.192V, and 10.000V

APPLICATIONS

• Portable, Battery-Powered Equipment

• Data Acquisition Systems

• Instrumentation

• Process Control

• Energy Management

• Product Testing

• Automotive

• Precision Audio Components
