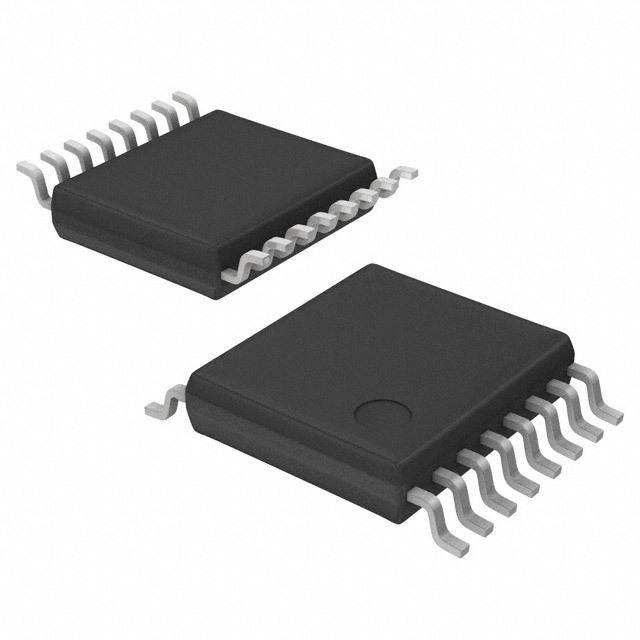

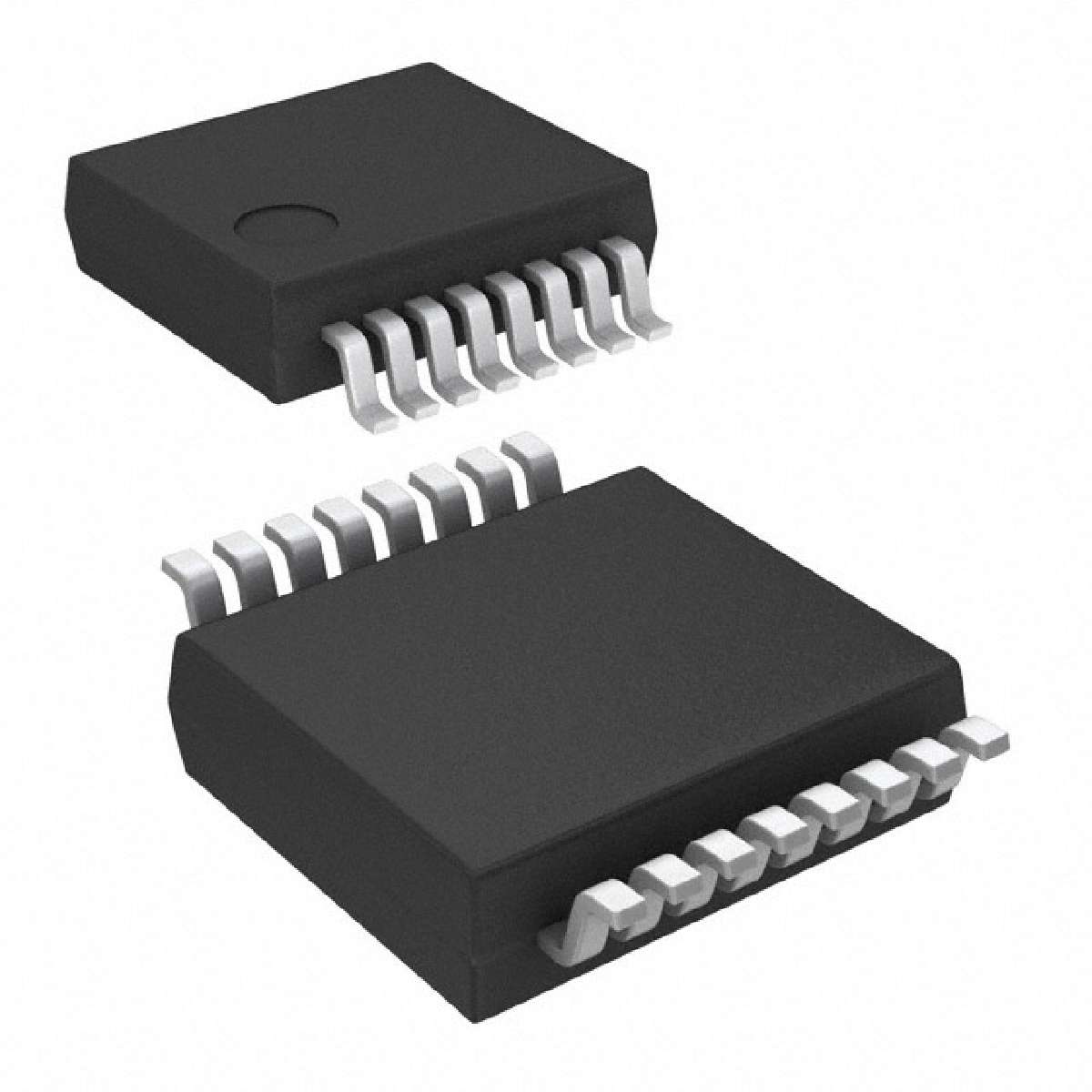

LB11867FV-TLM-E

对于风扇电动机变频调速单相全波预驱动器 For Fan Motor Variable Speed Single-phase Full-wave Pre-driver

LB11867FV is a single-phase bipolar driving motor pre-driver with the variable speed function compatible with external PWM signal. With a few external parts, a highly-efficient and highly-silent variable drive fan motor with low power consumption can be achieved. This product is best suited for driving of the server requiring large air flow and large current and the fan motor of consumer appliances.

Features |   | Benefits

---|---|---

 | |  | |  |

.

Single-phase full-wave driving pre-driver

|   |

.

Low-saturation drive using external PMOS-NMOS enables high-efficiency low power-consumption drive

.

Variable speed control possible with external PWM input

|   |

.

Separately-excited upper direct PWM f =30kHz control method ensures highly silent speed control

.

Current limiting circuit incorporated

|   |

.

Chopper type current limiting made at startup and during lock

.

Reactive current cut circuit incorporated

|   |

.

Reactive current before phase changeover is cut, ensuring highly silent and low power-consumption drive

.

Minimum speed setting pin

|   |

.

Minimum speed setting

.

Soft start setting pin

|   |

.

Soft start setting

.

Lock protection and automatic reset circuits incorporated

|   |

.

Lock protection

.

FG rotation speed detection output

|   |

.

Easy Speed control

.

Thermal shutdown circuit incorporated

|   |

.

Thermal protection
