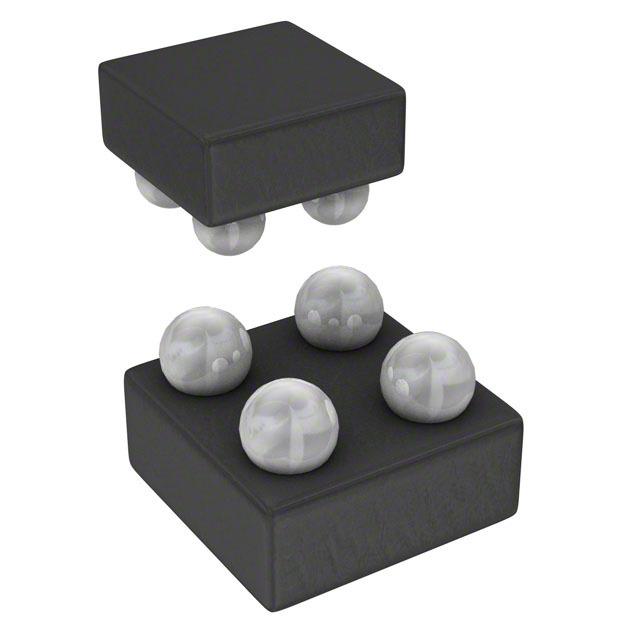

LD39115J 系列 150 mA 2.5 V 低噪声 LDO 稳压器 - FLIP CHIP-4
Maintain a steady voltage level with this LDO linear regulator from STMicroelectronics. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.08@100mA V. This voltage regulation device"s single output can produce a current up to 0.15 A. This will operate at a minimum voltage of 1.5 V and a maximum voltage of 5.5 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 2.5 V, this is power management at its best. Users like the load regulation of 0.002%/mATyp and line regulation of 0.01%/VTyp. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 0.11@100mA V.
输出接口数 1
输出电压 2.5 V
输出电流 150 mA
供电电流 50µA ~ 70µA
静态电流 70 µA
跌落电压 0.08V @100mA
输入电压Max 5.5 V
输入电压Min 1.5 V
输出电压Min 2.5 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 5.5 V
安装方式 Surface Mount
引脚数 4
封装 Flip-Chip
封装 Flip-Chip
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LD39115J25R ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
LD39015J25R 意法半导体 | 类似代替 | LD39115J25R和LD39015J25R的区别 |
