LM323 线性电压调节器,STMicroelectronics**STMicroelectronics** 的正电压调节器 **LM323** 是可调输出调节器集成电路。 这种三端子设备具有预设 5 V 输出,工作负载可达 3A。 这种线性电压调节器采用的技术可在不影响低电流设备调节特性的情况下提供高输出电流。 该设备功能非常强大,因为它具有热关闭、电流限制和功率限制特性。 输出电流:3 A 典型输出阻抗:0.01 Ω 功率耗散:30 W ### 线性电压调节器,STMicroelectronics
LM323 线性稳压器,STMicroelectronics
**STMicroelectronics** 正电压稳压器 **LM323** 是可调输出调节器集成电路。 这种三端子设备具有预设 5 V 输出,工作负载可达 3A。 这种线性稳压器采用的技术可在不影响低电流设备调节特性的情况下提供高输出电流。 该设备功能非常强大,因为它具有热关闭、电流限制和功率限制特性。
输出电流:3 A
典型输出阻抗:0.01 Ω
功率耗散:30 W
得捷:
IC REG LINEAR 5V 3A TO220
欧时:

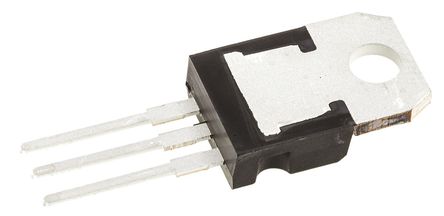

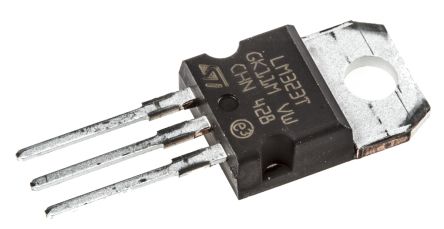

STMicroelectronics LM323T 线性稳压器, 7.5 → 20 V输入, 5 V输出, 3A最大输出, 30W, 3引脚 TO-220
贸泽:
Linear Voltage Regulators 5.0V 3.0A Positive
艾睿:
If you need to maintain a steady voltage on your circuit, then this standard LM323T linear regulator from STMicroelectronics is perfect for you! This device has a maximum power dissipation of 30000 mW. This voltage regulation device&s;s single output can produce a current up to 3 A. By only needing an input voltage of 7.5 V with a maximum of 20 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 5 V, this is power management at its best. A load regulation of 100mV and line regulation of 25mV is necessary for providing a constant voltage level at your output. Its maximum power dissipation is 30000 mW. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This voltage regulation device has a minimum operating temperature of 0 °C and a maximum of 125 °C. Its polarity is positive.
DeviceMart:
IC REG LDO ADJ 3A TO220-3
额定功率 30 W
输出接口数 1
输入电压DC 20.0V max
输出电压 5 V
输出电流 3 A
耗散功率 30000 mW
静态电流 12 mA
输入电压Max 20 V
输入电压Min 7.5 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min 0 ℃
耗散功率Max 30000 mW
输入电压 7.5V ~ 20V
安装方式 Through Hole
引脚数 3

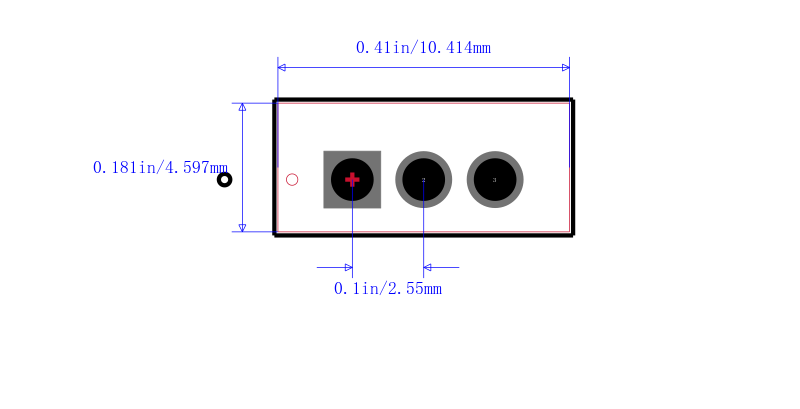

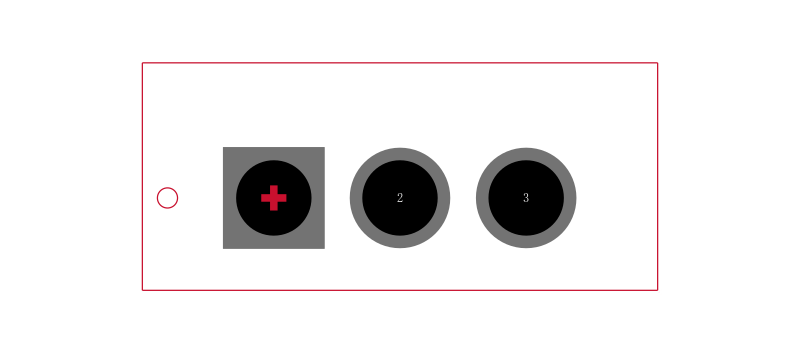

封装 TO-220-3
长度 10.4 mm
宽度 4.6 mm
高度 9.15 mm
封装 TO-220-3
工作温度 0℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM323T ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
LT323AT#PBF 凌力尔特 | 完全替代 | LM323T和LT323AT#PBF的区别 |
LM123K 意法半导体 | 类似代替 | LM323T和LM123K的区别 |
LM323K 意法半导体 | 功能相似 | LM323T和LM323K的区别 |
