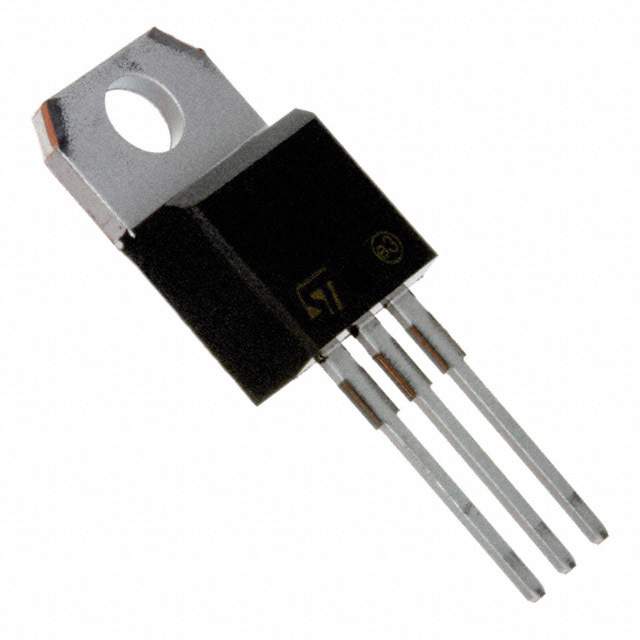

STMICROELECTRONICS LF60CV 固定电压稳压器, LDO, 3V至16V, 400mV压差, 6V输出, 0.5A输出, TO-220-3
The is a 6V fixed output very low-dropout LDO Linear Regulator. The low drop voltage 0.45V and low quiescent current make it particularly suitable for low-noise, low power applications and especially in battery powered systems. The device requires a capacitor of only 2.2µF for stability, saving board space.
- .
- Internal current and thermal limit
- .
- 80dB Supply voltage rejection typical
- .
- ±2% at 25°C Accuracy
输出接口数 1
输入电压DC 16.0V max
输出电压 6 V
输出电流 500 mA
针脚数 3
静态电流 1.5 mA
跌落电压 400 mV
输入电压Max 16 V
输入电压Min 3 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 16 V
安装方式 Through Hole
引脚数 3
封装 TO-220-3
长度 10.4 mm
宽度 4.6 mm
高度 9.15 mm
封装 TO-220-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 Portable Devices, Industrial, 工业, 便携式器材, 电源管理, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
