LM117/LM317 可调电压调节器Texas Instruments LM117/LM317 系列可调三端正电压调节器提供 0.1、0.5 和 1.5A 的电流额定值。 输出电压范围从 1.25 V 至 37 V,且通过两个外部电阻器进行设置。 这些坚固且可靠的设备包含电流限制、热过载保护和安全工作区保护。输出电压范围:1.2 V 至 37 V 输出电流:1.5 A LM317、0.5 A LM317M、0.1 A LM317L 典型线路调节:0.01% 典型负载调节:0.1% ### 线性电压调节器,Texas InstrumentsTexas Instruments 固定和可调线性电压调节器系列。 该系列包括正极和负极设备,输出电流额定值从 100mA 到 5A。
LM117/LM317 可调稳压器
Texas Instruments LM117/LM317 系列可调三端正稳压器提供 0.1、0.5 和 1.5A 的电流额定值。 输出电压范围从 1.25 V 至 37 V,且通过两个外部电阻器进行设置。 这些坚固且可靠的设备包含电流限制、热过载保护和安全工作区保护。
输出电压范围:1.2 V 至 37 V
输出电流:1.5 A LM317、0.5 A LM317M、0.1 A LM317L
典型线路调节:0.01%
典型负载调节:0.1%
得捷:
IC REG LIN POS ADJ 100MA 6DSBGA
立创商城:
LM317LITP/NOPB
德州仪器TI:
100-mA, 40-V, high-PSRR, adjustable linear voltage regulator
欧时:
### LM117/LM317 可调电压调节器Texas Instruments LM117/LM317 系列可调三端正电压调节器提供 0.1、0.5 和 1.5A 的电流额定值。 输出电压范围从 1.25 V 至 37 V,且通过两个外部电阻器进行设置。 这些坚固且可靠的设备包含电流限制、热过载保护和安全工作区保护。输出电压范围:1.2 V 至 37 V 输出电流:1.5 A LM317、0.5 A LM317M、0.1 A LM317L 典型线路调节:0.01% 典型负载调节:0.1% ### 线性电压调节器,Texas InstrumentsTexas Instruments 固定和可调线性电压调节器系列。 该系列包括正极和负极设备,输出电流额定值从 100mA 到 5A。
贸泽:
Linear Voltage Regulators 3Pin 100mA Adj Vltg Reg ALT 595-LM317LIPWR
艾睿:
Don&s;t let unpredictable voltage levels ruin your circuit! Use this LDO LM317LITP/NOPB linear regulator from Texas Instruments to control your voltage levels! This voltage regulation device&s;s single output can produce a current up to 0.1 A. Use this part at voltages between 4.2 V and 40 V. With an adjustable output that has a voltage of 1.2 to 37 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 0.5% and line regulation of 0.04%/V. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 1.2V to 37V 0.1A 6-Pin uSMD T/R
Chip1Stop:
LDO Regulator Pos 1.2V to 37V 0.1A 6-Pin uSMD T/R
Verical:
Standard Regulator Pos 1.2V to 37V 0.1A Automotive 6-Pin uSMD T/R
DeviceMart:
IC REG LDO ADJ .1A 6USMD
输出接口数 1
输出电压 1.2V ~ 37V
输出电流 100 mA
静态电流 120 µA
跌落电压 1.80 V
调节输出数 1
输入电压Max 40 V
输入电压Min 4.2 V
输出电压Max 37 V
输出电压Min 1.2 V
输出电流Max 100 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 4.2V ~ 40V
安装方式 Surface Mount
引脚数 6

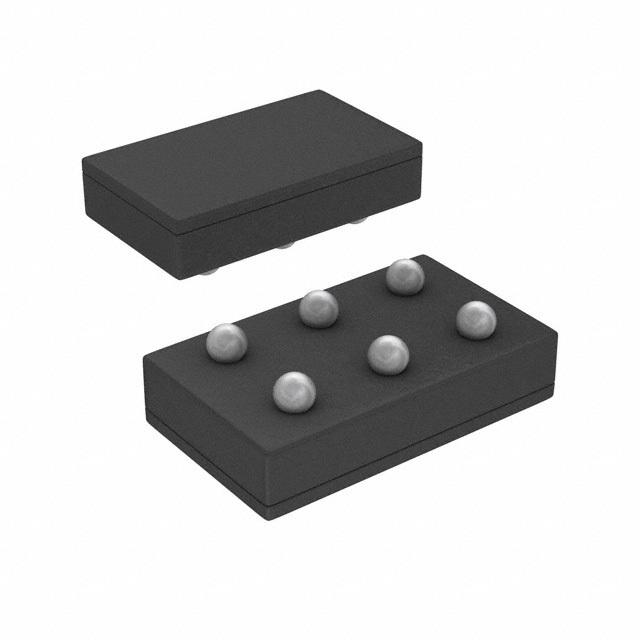

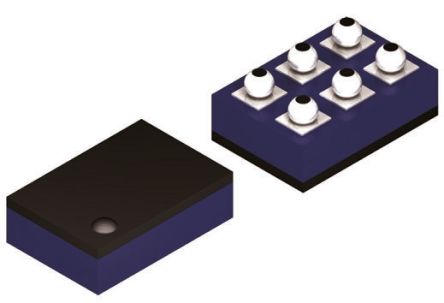

封装 UFBGA-6
长度 1.02 mm
宽度 1.019 mm
高度 0.35 mm
封装 UFBGA-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM317LITP/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM317LIBP 德州仪器 | 完全替代 | LM317LITP/NOPB和LM317LIBP的区别 |
LM317LIBPX 德州仪器 | 完全替代 | LM317LITP/NOPB和LM317LIBPX的区别 |
LM317LITPX/NOPB 德州仪器 | 类似代替 | LM317LITP/NOPB和LM317LITPX/NOPB的区别 |
