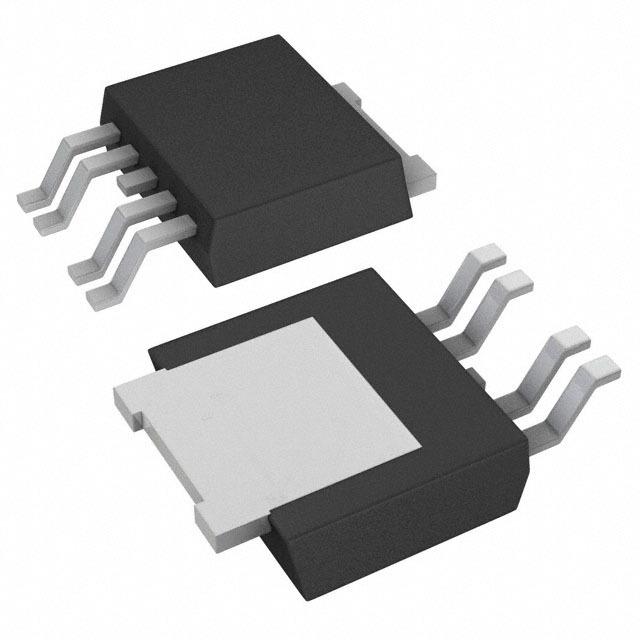

LD29080PT50R

800毫安固定和可调输出非常低的压差电压regulatorm 800mA Fixed and adjustable output very low drop voltage regulatorm

PMIC - 稳压器 - 线性 正 固定 1 输出 800mA PPAK

得捷:
IC REG LINEAR 5V 800MA PPAK

贸泽:
低压差稳压器 800mA Fixed Adjust output very Lo drop

艾睿:
Don&s;t let unpredictable voltage levels ruin your circuit! Use this LDO LD29080PT50R linear regulator from STMicroelectronics to control your voltage levels! It has an overall accuracy of ±1 %. Its typical dropout voltage at current is 0.1@150mA|0.2@400mA|0.4@800mA V. This voltage regulation device&s;s single output can produce a current up to 0.8 A. The best way to provide power to your application is by using this, which needs a voltage lower than 13 V. With a fixed output that has a voltage of 5 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 1% and line regulation of 0.5%. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive. The maximum dropout voltage is 0.7@800mA V.

Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 5V 800mA PPAK
