具有 0°C 至 125°C 工作温度范围的 1A、15V 高精度线性稳压器 3-TO-252 0 to 125
The LMS8117A device is a series of low-dropout voltage regulators with a dropout of 1.2 V at 1 A of load current. The device has the same pinout as the LM317.
The LMS8117A is available in an adjustable version, which can set the output voltage from 1.27 V to 13.8 V with only two external resistors. In addition, the device is also available in two fixed voltages, 1.8 V and 3.3 V.
The LMS8117A offers current limiting and thermal shutdown. The device circuit includes a Zener trimmed band-gap reference to assure output voltage accuracy to within ±1%.
The LMS8117A is available in SOT-223 and TO-252 D-PAK packages. A 10-µF minimum tantalum capacitor is required at the output to improve the transient response and stability.
输出接口数 1
输出电压 1.25V ~ 13.8V
输出电流 1 A
供电电流 5mA ~ 10mA
静态电流 5.00 mA
输出电容类型 Ceramic
跌落电压 1.2 V
调节输出数 1
输入电压Max 15 V
输入电压Min 2.5 V
输出电压Max 13.8 V
输出电压Min 1.25 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min 0 ℃
精度 ±1 %
输入电压 2.5V ~ 15V

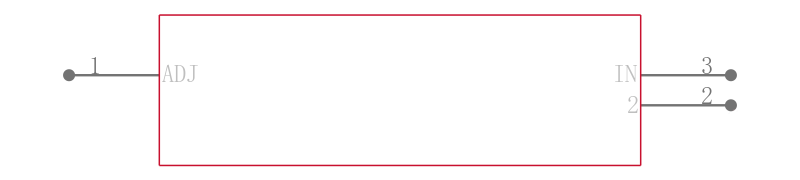

安装方式 Surface Mount
引脚数 3
封装 TO-252-3
封装 TO-252-3
工作温度 0℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LMS8117ADTX-ADJ/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LMS8117ADT-ADJ/NOPB 德州仪器 | 完全替代 | LMS8117ADTX-ADJ/NOPB和LMS8117ADT-ADJ/NOPB的区别 |
LMS8117ADT-ADJ 德州仪器 | 类似代替 | LMS8117ADTX-ADJ/NOPB和LMS8117ADT-ADJ的区别 |
LD1117ADT-TR 意法半导体 | 功能相似 | LMS8117ADTX-ADJ/NOPB和LD1117ADT-TR的区别 |
