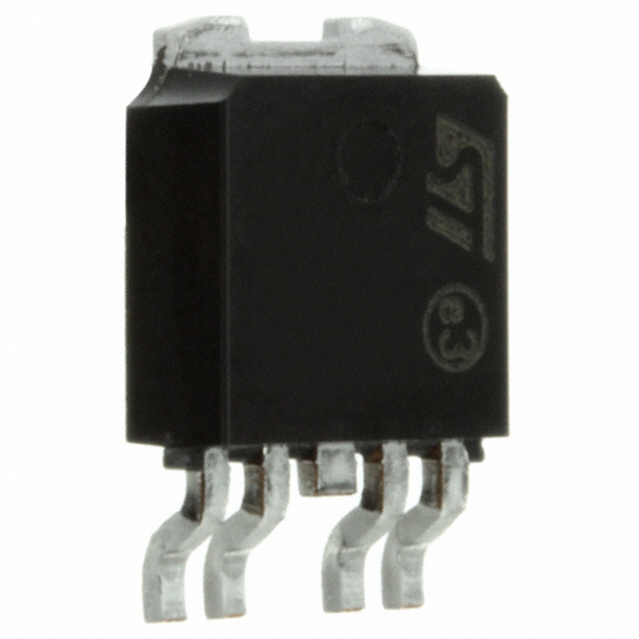

LF18ABPT-TR

非常低压降稳压器与抑制 Very low drop voltage regulators with inhibit

PMIC - 稳压器 - 线性 正 固定 1 输出 500mA PPAK

得捷:
IC REG LINEAR 1.8V 500MA PPAK

艾睿:
Having trouble maintaining a steady voltage? This LDO LF18ABPT-TR linear regulator from STMicroelectronics will give you control over the voltage levels of your circuit. Its typical dropout voltage at current is 0.7@200mA V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.5 A. It only needs a voltage of at least 3 V while not exceeding 16 V to effectively power your circuit. With a fixed output that has a voltage of 1.8 V, this is power management at its best. Using a load regulation of 10mV and line regulation of 12mV is needed for a programmable DC power supply. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.

安富利:
LDO Regulator Pos 1.8V 0.5A 5-Pin4+Tab PPAK T/R

Chip1Stop:
LDO Regulator Pos 1.8V 0.5A 5-Pin4+Tab PPAK T/R
