LDO(低压降)线性稳压器,ON Semiconductor,最高可达 120mA### LDO(低压降)线性稳压器,ON Semiconductor低压降或 LDO 为线性稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
低压降 LDO 线性电压调节器,高达 120mA,
### LDO(低压降)线性稳压器,ON Semiconductor
低压降或 LDO 为线性稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:

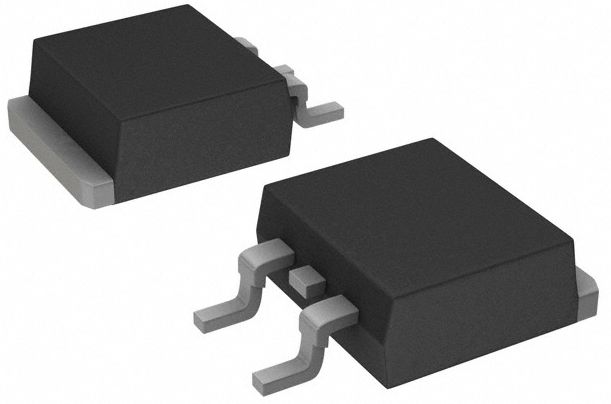

IC REG LINEAR 5V 100MA D2PAK
立创商城:
LM2931D2T-5.0R4G
欧时:
### LDO(低压降)线性稳压器,ON Semiconductor,最高可达 120mA### LDO(低压降)线性稳压器,ON Semiconductor低压降或 LDO 为线性稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
艾睿:
Stable voltages are always needed for sensitive systems implement this LDO LM2931D2T-5.0R4G linear regulator from ON Semiconductor. Its typical dropout voltage at current is 0.015@10mA|0.16@100mA V. It has an overall accuracy of ±5 %. This voltage regulation device&s;s single output can produce a current up to 0.1Typ A. By working with a maximum input voltage of 40 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 5 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 50mV and line regulation of 30mV. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.2@10mA|0.6@100mA V. Its polarity is positive.
安富利:
LDO Regulator Pos 5V 0.1A 3-Pin2+Tab D2PAK T/R
Chip1Stop:
LDO Regulator Pos 5V 0.1A 3-Pin2+Tab D2PAK T/R
Verical:
LDO Regulator Pos 5V 0.1A 3-Pin2+Tab D2PAK T/R
力源芯城:
100mA,可调输出带有60V负载保护
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 5V 100mA D2PAK
无卤素状态 Halogen Free
输出接口数 1
输入电压DC 40.0V max
输出电压 5 V
输出电流 100 mA
极性 P-Channel
跌落电压 0.16V @100mA
输入电压Max 40 V
输出电流Max 100 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±5 %
输入电压 ≤40 V
安装方式 Surface Mount
引脚数 3
封装 TO-263-3
长度 10.23 mm
宽度 4.5 mm
高度 9.34 mm
封装 TO-263-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Battery Powered Consumer Products, Automotive, Handheld Instruments
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2931D2T-5.0R4G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
LM2931D2T-5.0R4 安森美 | 完全替代 | LM2931D2T-5.0R4G和LM2931D2T-5.0R4的区别 |
LM2931ADT-5.0RKG 安森美 | 类似代替 | LM2931D2T-5.0R4G和LM2931ADT-5.0RKG的区别 |
LM2931DT-5.0G 安森美 | 类似代替 | LM2931D2T-5.0R4G和LM2931DT-5.0G的区别 |
