具有 I2C 音量控制功能的 15.2V、立体声、模拟输入、陶瓷扬声器驱动器 16-DSBGA
The LM48823 is a single supply, mono, ceramic speaker driver with an integrated charge-pump, designed for portable devices, such as cell phones, where board space is at a premium. The LM48823 charge pump allows the device to deliver 5.4VRMS from a single 4.2V supply.
The LM48823 features high power supply rejection ratio PSRR, 93dB at 217Hz, allowing the device to operate in noisy environments without additional power supply conditioning. Flexible power supply requirements allow operation from 2.0V to 4.5V. The LM48823 features an active low reset input that reverts the device to its default state. Additionally, the LM48823 features a 32-step I 2C volume control. The low power Shutdown mode reduces supply current consumption to 0.01µA.

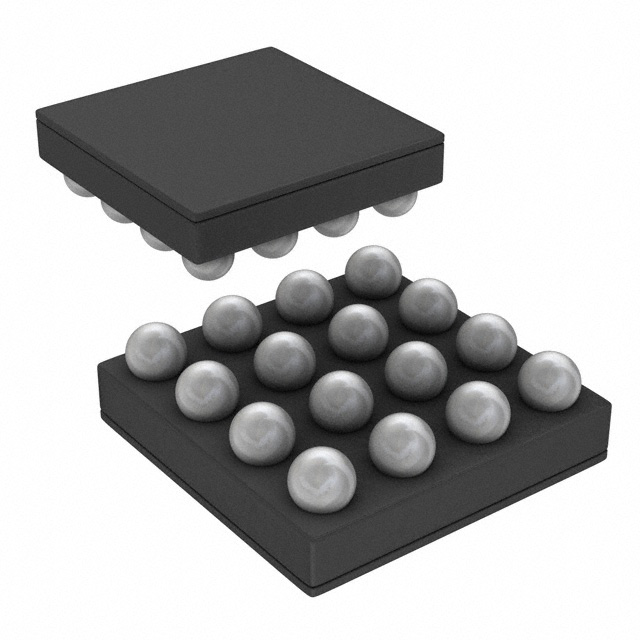

The LM48823’s superior click and pop suppression eliminates audible transients on power-up/down and during shutdown. The LM48823 is available in an ultra-small 16-bump micro SMD package 2mmx2mm.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM48823TL/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM48823TLX/NOPB 德州仪器 | 完全替代 | LM48823TL/NOPB和LM48823TLX/NOPB的区别 |
0461-4-15-80-11-84-04-0 仕元机械 | 功能相似 | LM48823TL/NOPB和0461-4-15-80-11-84-04-0的区别 |
