LDO 电压稳压器,STMicroelectronics### LDO(低压降)线性电压调节器,STMicroelectronics低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
可调线性 LDO 电压稳压器,STMicroelectronics
### LDO(低压降)线性电压调节器,STMicroelectronics
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
欧时:
可调线性 LDO 电压稳压器,STMicroelectronics### LDO(低压降)线性电压调节器,STMicroelectronics低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LINEAR POS ADJ 3A P2PAK-4
立创商城:
LD29300P2MTR
e络盟:
可调LDO稳压器, 2.5V至30V, 400mV压降, 2.5V至20V/3 A输出, TO-263-6
艾睿:
Use the LDO LD29300P2MTR linear regulator from STMicroelectronics to maintain a constant output voltage. It has an overall accuracy of ±1 %. Its typical dropout voltage at current is 0.1@500mA|0.2@1.5A|0.4@3A V. This voltage regulation device&s;s single output can produce a current up to 3 A. The best way to provide power to your application is by using this, which needs a voltage of at least 2.5 V and no higher than 30 V. With an adjustable output, this is power management at its best. Operate at a constant current by utilizing the load regulation of 1% and line regulation of 0.5%. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. The maximum dropout voltage is 0.7@3A V. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
安富利:
LDO Regulator Pos 3A 6-Pin5+Tab P2PAK/A T/R
富昌:
LD29300 Series 3 A Adjustable Output LDO Voltage Regulator - P2PAK-5
Verical:
LDO Regulator Pos 3A 6-Pin5+Tab P2PAK/A T/R
儒卓力:
**LDO.VREG ADJ 3A P2PAK/A **
DeviceMart:
IC REG LDO ADJ 3A P2PAK/A
Win Source:
Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5 V ~ 9 V 3A P2PAK-4
输出接口数 1
输入电压DC 30.0V max
输出电压 1.5V ~ 9V
输出电流 3 A
针脚数 6
静态电流 20 mA
跌落电压 400 mV
输入电压Max 30 V
输入电压Min 2.5 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 2.5V ~ 14V
安装方式 Surface Mount
引脚数 6

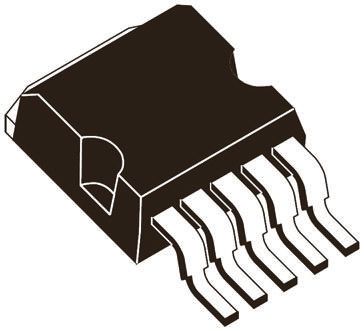

封装 TO-263-6
长度 10.4 mm
宽度 9.35 mm
高度 4.8 mm
封装 TO-263-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LD29300P2MTR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
LD29300P2M 意法半导体 | 完全替代 | LD29300P2MTR和LD29300P2M的区别 |
NCV4276ADSADJR4G 安森美 | 功能相似 | LD29300P2MTR和NCV4276ADSADJR4G的区别 |
NCV4276ADSADJG 安森美 | 功能相似 | LD29300P2MTR和NCV4276ADSADJG的区别 |
