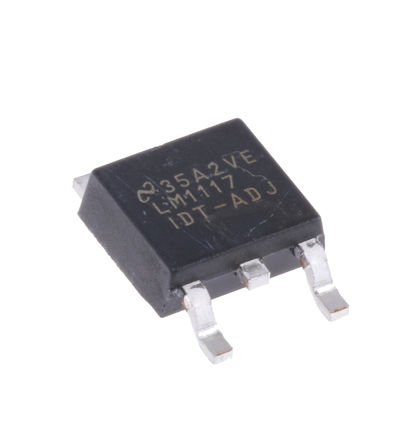

TEXAS INSTRUMENTS LM1117IDT-ADJ/NOPB 电压稳压器, LDO, 可调, 2.6V至15V输入, 1.2V压差, 1.25V至13.8V/0.8A输出, TO-252-3
可调 LDO(低压降)线性电压稳压器,1A 至 2A,Texas Instruments
### LDO(低压降)线性稳压器,Texas Instruments
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LIN POS ADJ 800MA TO252-3
立创商城:
LM1117IDT-ADJ/NOPB
德州仪器TI:
800-mA 15-V linear voltage regulator
欧时:
### 可调 LDO(低压降)线性电压稳压器,1A 至 2A,Texas Instruments### LDO(低压降)线性电压调节器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
e络盟:
电压稳压器, LDO, 可调, 2.6V至15V输入, 1.2V压差, 1.25V至13.8V/0.8A输出, TO-252-3
艾睿:
Stable power is ideal for better processing this LDO LM1117IDT-ADJ/NOPB linear regulator developed by Texas Instruments will help do so. Its typical dropout voltage at current is 1.1@100mA|1.15@500mA|1.2@800mA V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.8 A. The best way to provide power to your application is by using this, which needs a voltage lower than 15 V. With an adjustable output that has a voltage of 1.25 to 13.8 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 0.2%Typ and line regulation of 0.035%Typ. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. The maximum dropout voltage is 1.3@100mA|1.35@500mA|1.4@800mA V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 1.25V to 13.8V 0.8A 3-Pin2+Tab TO-252 Rail
Chip1Stop:
LDO Regulator Pos 1.25V to 13.8V 0.8A 3-Pin2+Tab TO-252 Rail
Verical:
LDO Regulator Pos 1.25V to 13.8V 0.8A 3-Pin2+Tab TO-252 Tube
Newark:
# TEXAS INSTRUMENTS LM1117IDT-ADJ/NOPB LDO, REG, 15VIN, ADJ, +/-0.2%, 3TO252
DeviceMart:
IC REG LDO ADJ .8A TO-252
输出接口数 1
输出电压 1.25V ~ 13.8V
输出电流 800 mA
针脚数 3
静态电流 5 mA
输出电容类型 Tantalum
跌落电压 1.2 V
调节输出数 1
输入电压Max 15 V
输入电压Min 2.6 V
输出电压Max 13.8 V
输出电压Min 1.25 V
输出电流Max 0.8 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 2.65V ~ 15V
安装方式 Surface Mount
引脚数 3
封装 TO-252-3
长度 6.58 mm
宽度 6.1 mm
高度 2.3 mm
封装 TO-252-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Each
制造应用 信号处理, 消费电子产品, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM1117IDT-ADJ/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM1117DT-ADJ/NOPB 德州仪器 | 类似代替 | LM1117IDT-ADJ/NOPB和LM1117DT-ADJ/NOPB的区别 |
LM1117DTX-ADJ/NOPB 德州仪器 | 类似代替 | LM1117IDT-ADJ/NOPB和LM1117DTX-ADJ/NOPB的区别 |
LM1117IDTX-ADJ/NOPB 德州仪器 | 类似代替 | LM1117IDT-ADJ/NOPB和LM1117IDTX-ADJ/NOPB的区别 |
