LM4040 -N / LM4040Q -N精密微功耗并联型电压基准 LM4040-N/LM4040Q-N Precision Micropower Shunt Voltage Reference
分流器 电压基准 IC ±0.2% SC-70-5
得捷:
IC VREF SHUNT 0.2% SC70-5
立创商城:
并联 15mA
德州仪器TI:
100-ppm/°C precision micropower shunt voltage reference
贸泽:
参考电压 100-ppm/-C precision micropower shunt voltage reference 5-SC70
艾睿:
Even in the event of large power supply variations, this LM4040BIM7-2.0/NOPB voltage reference power management device from Texas Instruments can produce and maintain a precise DC voltage. It has an initial accuracy of 0.2%. With an output that has a voltage of 2.048 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 6mV. This voltage reference circuit supports shunt topology. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This voltage reference circuit has a minimum operating temperature of -40 °C and a maximum of 85 °C. It runs with a maximum temperature coefficient of 20ppm/°CTyp.
安富利:
V-Ref Precision 2.048V 15mA 5-Pin SC-70 T/R
Verical:
V-Ref Precision 2.048V 15mA 5-Pin SC-70 T/R
DeviceMart:
IC VREF SHUNT PREC 2.048V SC70-5
容差 ±0.2 %
输出电压 2.048 V
输出电流 15 mA
输出电压Max 2.048 V
输出电压Min 2.048 V
输出电流Max 15 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 0.2 %
安装方式 Surface Mount
引脚数 5

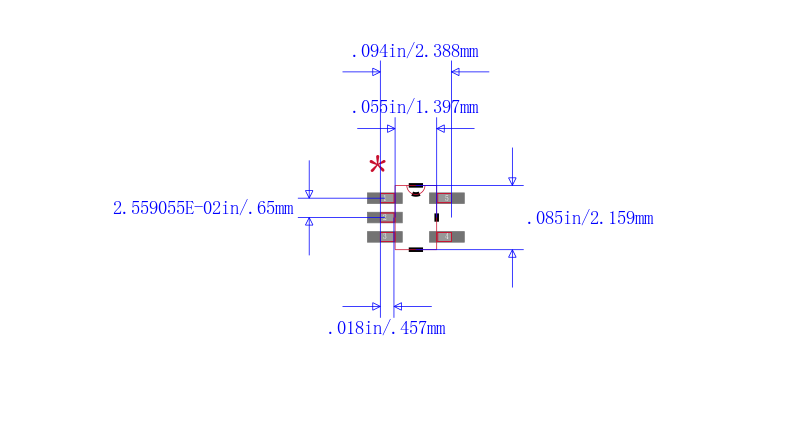

封装 SC-70-5
长度 2 mm
宽度 1.25 mm
高度 0.9 mm
封装 SC-70-5
工作温度 -40℃ ~ 85℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM4040BIM7-2.0/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM4040BIM7-2.0 德州仪器 | 完全替代 | LM4040BIM7-2.0/NOPB和LM4040BIM7-2.0的区别 |
LM4040B20IDCKR 德州仪器 | 类似代替 | LM4040BIM7-2.0/NOPB和LM4040B20IDCKR的区别 |
