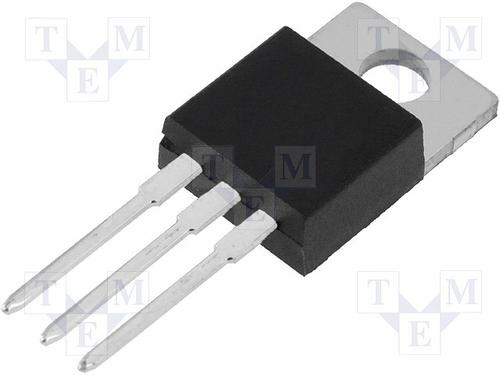

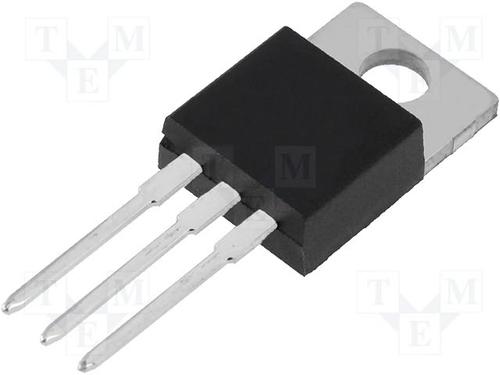

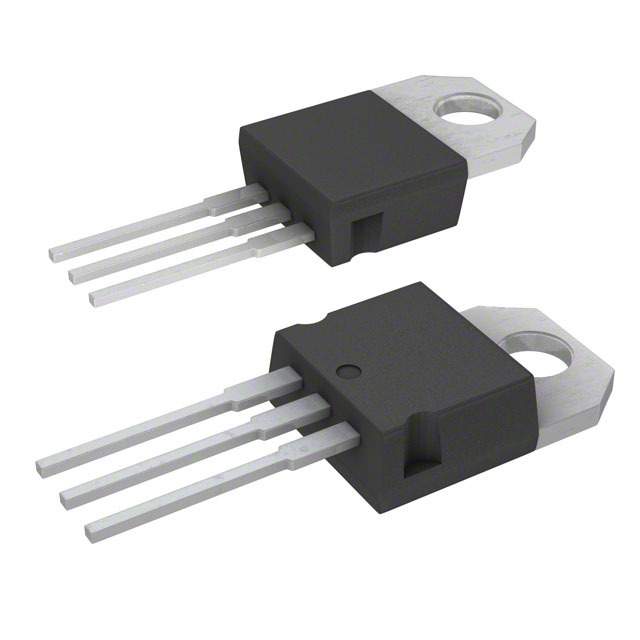

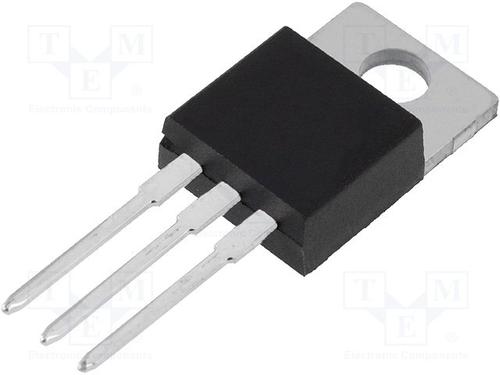

LDO Regulator Pos 3.3V 0.5A 3Pin TO-220 Tube
Having trouble maintaining a steady voltage? This LDO linear regulator from STMicroelectronics will give you control over the voltage levels of your circuit. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.2@200mA|0.4@500mA V. This voltage regulation device"s single output can produce a current up to 0.5 A. Supply your circuit with sufficient power by implementing this, which does not exceed 16 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Users like the load regulation of 16mV and line regulation of 16mV. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its polarity is positive. The maximum dropout voltage is 0.35@200mA|0.7@500mA V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
工作电压 4.3V ~ 16V
输出接口数 1
输出电压 3.3 V
输出电流 500 mA
静态电流 0.5 mA
跌落电压 0.2V @200mA,0.4V @500mA
输入电压Max 16 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 ≤16 V
安装方式 Through Hole
引脚数 3
封装 TO-220-3
封装 TO-220-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LF33CV-DG ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
LF33CPT 意法半导体 | 完全替代 | LF33CV-DG和LF33CPT的区别 |
LF33ABV-DG 意法半导体 | 类似代替 | LF33CV-DG和LF33ABV-DG的区别 |
LF33ABP 意法半导体 | 类似代替 | LF33CV-DG和LF33ABP的区别 |
