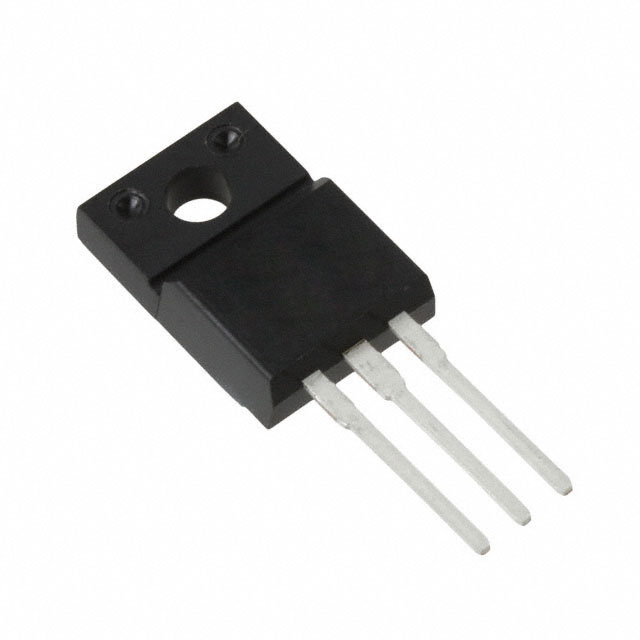

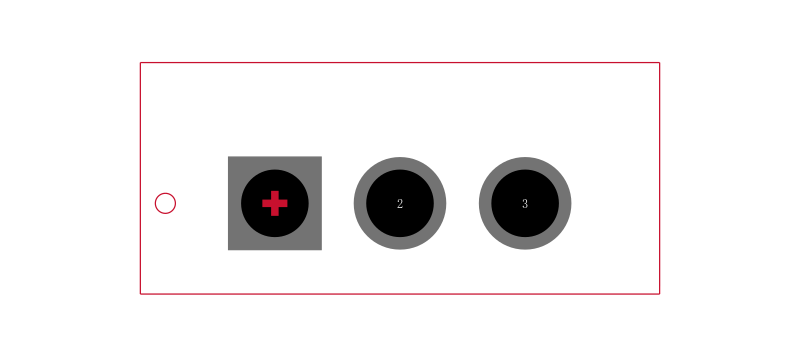

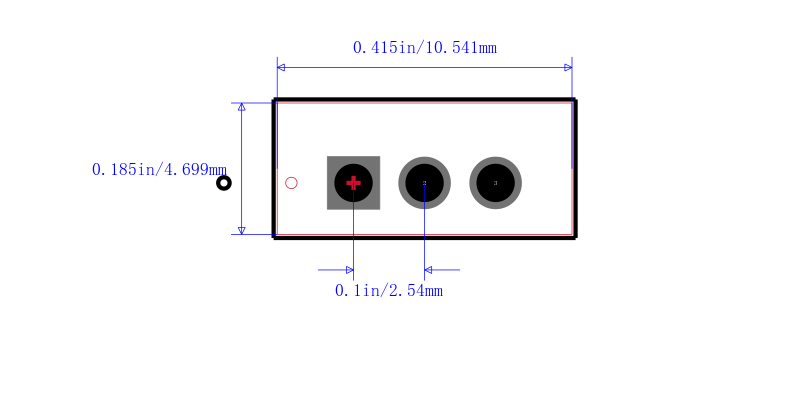

LM320T-15

LM120 / LM320 -N系列三端稳压器的负 LM120/LM320-N Series 3-Terminal Negative Regulators

DESCRIPON

The LM120 series are three-terminal negative regulators with a fixed output voltage of −5V, −12V, and −15V, and up to 1.5A load current capability. Where other voltages are required, the LM137 and LM137HV series provide an output voltage range of −1.2V to −47V. The LM120 need only one external component—a compensation capacitor at the output, making them easy to apply. Worst case specifications on output voltage deviation due to any combination of line, load or temperature variation assure satisfactory system operation.

FEATURES

• Preset Output Voltage Error Less than ±3%

• Preset Current Limit

• Internal Thermal Shutdown

• Operates with Input-Output Voltage Differential down to 1V

• Excellent Ripple Rejection

• Low Temperature Drift

• Easily Adjustable to Higher Output Voltage
