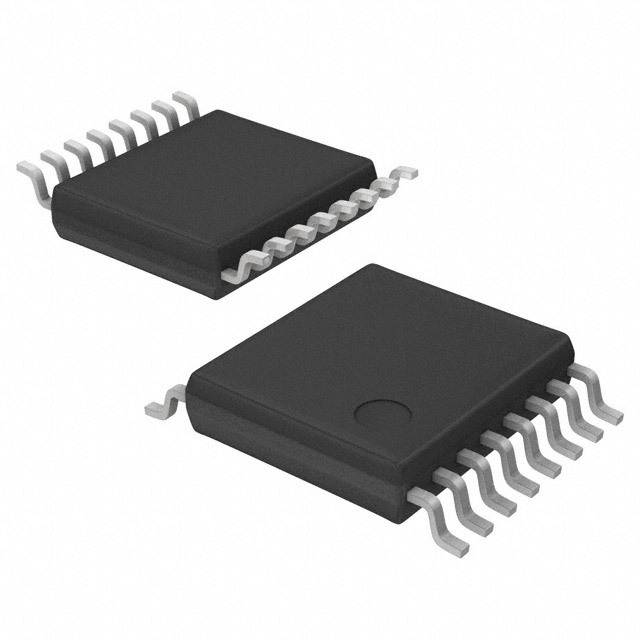

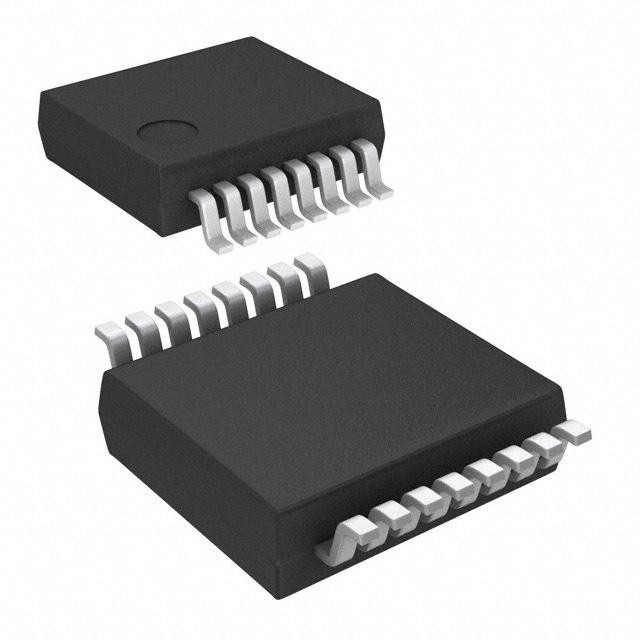

1-Phase Fan Motor Driver 16Pin SSOP T/R
The LB11660RV is a single-phase bipolar half pre-driver that can achieve high-efficient direct PWM drive with ease. It is ideal for driving small-sized cooling fans used in servers. The LB11660RV is provided with the RD lock detection output pin and the LB11660FV the FG rotational speed detection output pin, respectively.
Features
---
|
the circuit actuated at IO = 1A when Rf = 0.5Ω, Rf determines the limiter value.
including a circuit that changes the ON/OFF ratio according to the power supply voltage
无卤素状态 Halogen Free
输出电流 1.5 A
耗散功率 800 mW
输出电流Max 1.5 A
工作温度Max 95 ℃
工作温度Min -30 ℃
耗散功率Max 800 mW
电源电压 4V ~ 15V
安装方式 Surface Mount
引脚数 16
封装 SSOP-16
封装 SSOP-16
工作温度 -30℃ ~ 95℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 风扇电机驱动器, Fan Motor Drive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LB11660RV-TLM-H ON Semiconductor 安森美 | 当前型号 | 当前型号 |
LB11660RV-TLM-E 安森美 | 完全替代 | LB11660RV-TLM-H和LB11660RV-TLM-E的区别 |
LB11660RV-MPB-E 安森美 | 类似代替 | LB11660RV-TLM-H和LB11660RV-MPB-E的区别 |
LB11660RV-MPB-H 安森美 | 类似代替 | LB11660RV-TLM-H和LB11660RV-MPB-H的区别 |
