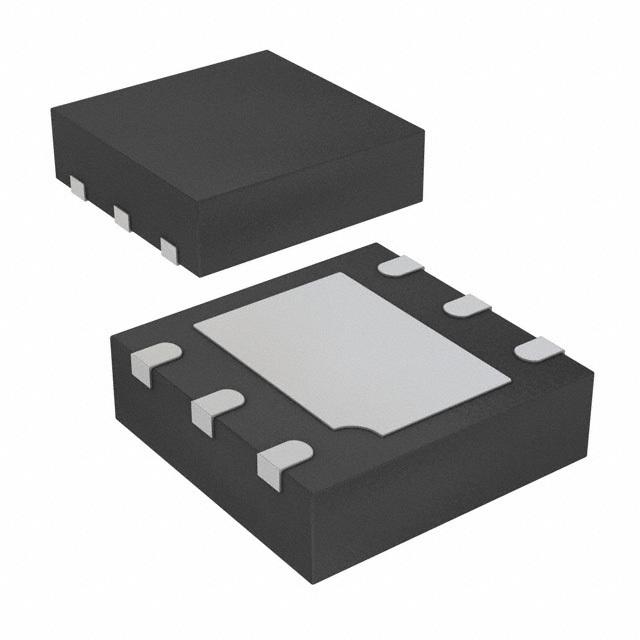

LDFM 系列 500 mA ADJ 输出 超低压差 稳压器 - DFN-6 2x2
Never worry about components not turning off and on due to lack of voltage with this LDO linear regulator from STMicroelectronics. Its typical dropout voltage at current is 0.125@500mA V. It has an overall accuracy of ±1 %. This voltage regulation device"s single output can produce a current up to 0.5 A. Use this part at voltages between 2.5 V and 16 V. With an adjustable output that has a voltage of 0.8 to 12 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 0.06%/ATyp and line regulation of 0.01%/VTyp. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. The maximum dropout voltage is 0.3@500mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
输出接口数 1
输出电压 0.8V ~ 12V
输出电流 500 mA
静态电流 800 µA
跌落电压 0.125V @500mA
输入电压Max 16 V
输入电压Min 2.5 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 2.5V ~ 16V
安装方式 Surface Mount
引脚数 6
封装 DFN-6
封装 DFN-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
