Step-Down DC/DC Converters Integrated Switch up to 6V Input Max., LM Series, Texas Instruments
### 直流/直流开关调节器转换器(集成开关),Texas Instruments
Texas Instruments 的此系列高度集成的高效开关稳压器包括步升(升压)、步降(降压)、步升/降(增压/降压)和反相类型,为每个直流稳压器应用提供高效的解决方案。
得捷:
IC REG BUCK 3.3V 1A 6DSBGA
立创商城:
LM3691TL-3.3/NOPB
德州仪器TI:
High Accuracy, Miniature 1A, Step-Down DC-DC Converter for Portable Applications
欧时:
### Step-Down DC/DC Converters Integrated Switch up to 6V Input Max., LM Series, Texas Instruments### 直流/直流开关调节器转换器(集成开关),Texas InstrumentsTexas Instruments 的此系列高度集成的高效开关稳压器包括步升(升压)、步降(降压)、步升/降(增压/降压)和反相类型,为每个直流稳压器应用提供高效的解决方案。
艾睿:
Adjust the voltage level of your devices with this step down LM3691TL-3.3/NOPB DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 1 A. This will operate at a minimum voltage of 2.3 V and a maximum voltage of 5.5 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. This part offers a switching frequency of 4000Typ kHz in order to work properly. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This converter has a minimum operating temperature of -30 °C and a maximum of 85 °C.
安富利:
Conv DC-DC Single Step Down 2.3V 5.5V 6-Pin DSBGA T/R
Chip1Stop:
Conv DC-DC Single Step Down 2.3V to 5.5V 6-Pin DSBGA T/R
Verical:
Conv DC-DC 2.3V to 5.5V Synchronous Step Down Single-Out 3.3V 1A 6-Pin DSBGA T/R
DeviceMart:
IC REG BUCK SYNC 3.3V 1A 6USMD
输出接口数 1
输出电压 3.3 V
输出电流 1 A
静态电流 64.0 µA
调节输出数 1
开关频率 4 MHz
拓扑结构 Buck
输入电压Max 5.5 V
输入电压Min 2.3 V
输出电压Max 3.3 V
输出电压Min 3.3 V
输出电流Max 1 A
工作温度Max 85 ℃
工作温度Min -30 ℃
输入电压 5.5 V
安装方式 Surface Mount
引脚数 6

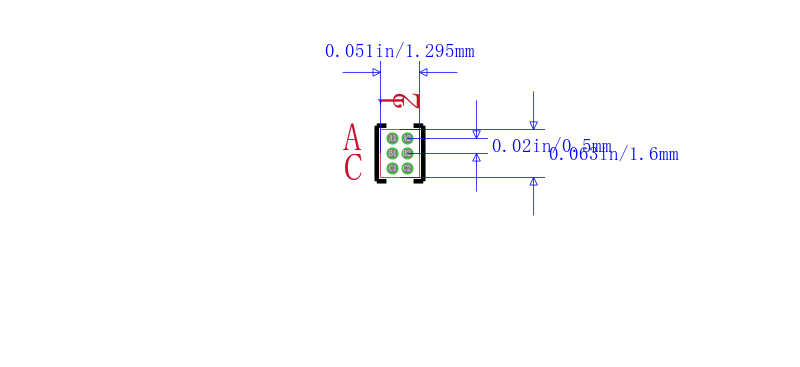

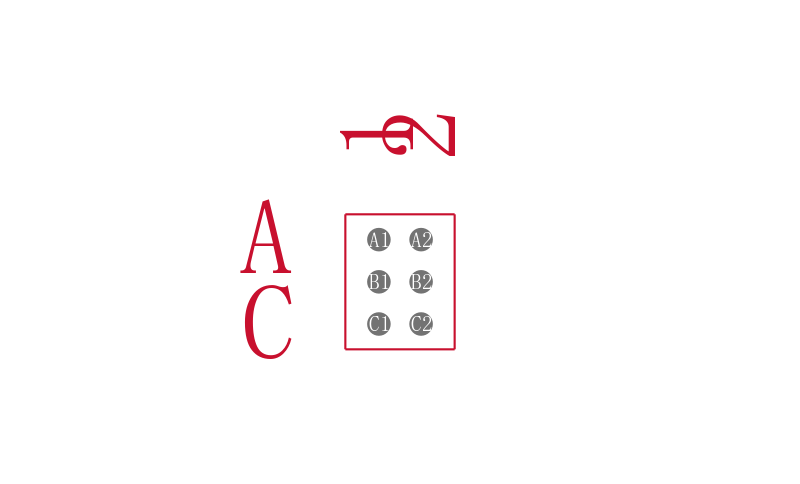

封装 WFBGA-6
长度 1.59 mm
宽度 1.295 mm
高度 0.335 mm
封装 WFBGA-6
工作温度 -30℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM3691TL-3.3/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM3691TLX-3.3/NOPB 德州仪器 | 类似代替 | LM3691TL-3.3/NOPB和LM3691TLX-3.3/NOPB的区别 |
