LDO(低压降)线性电压调节器,STMicroelectronics,250mA 至 500mA### LDO(低压降)线性电压调节器,STMicroelectronics低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
LDO(低压降)线性稳压器,STMicroelectronics,250mA 至 500mA
### LDO(低压降)线性电压调节器,STMicroelectronics
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LINEAR 5V 250MA PPAK
欧时:
### LDO(低压降)线性电压调节器,STMicroelectronics,250mA 至 500mA### LDO(低压降)线性电压调节器,STMicroelectronics低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
艾睿:
Never worry about components seeing unstable voltages again by implementing this LDO L4931CPT50-TR linear regulator manufactured by STMicroelectronics. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.4@250mA V. This voltage regulation device&s;s single output can produce a current up to 0.25 A. Supply your circuit with sufficient power by implementing this, which does not exceed 20 V. With a fixed output that has a voltage of 5 V, this is power management at its best. Using a load regulation of 15mV and line regulation of 17.5mV is needed for a programmable DC power supply. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 0.6@250mA V.
安富利:
LDO Regulator Pos 5V 0.25A 5-Pin4+Tab PPAK T/R
富昌:
L4931 系列 300 mA 5 V 固定输出 VLDO 稳压器 带禁用 - PPACK 5
Chip1Stop:
LDO Regulator Pos 5V 0.25A Automotive 5-Pin4+Tab PPAK T/R
Verical:
LDO Regulator Pos 5V 0.25A 5-Pin4+Tab PPAK T/R
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 5V 250mA PPAK
输出接口数 1
输入电压DC 20.0V max
输出电压 5 V
输出电流 250 mA
静态电流 0.6 mA
跌落电压 0.4V @250mA
输入电压Max 20 V
输出电流Max 0.25 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 ≤20 V
安装方式 Surface Mount
引脚数 5

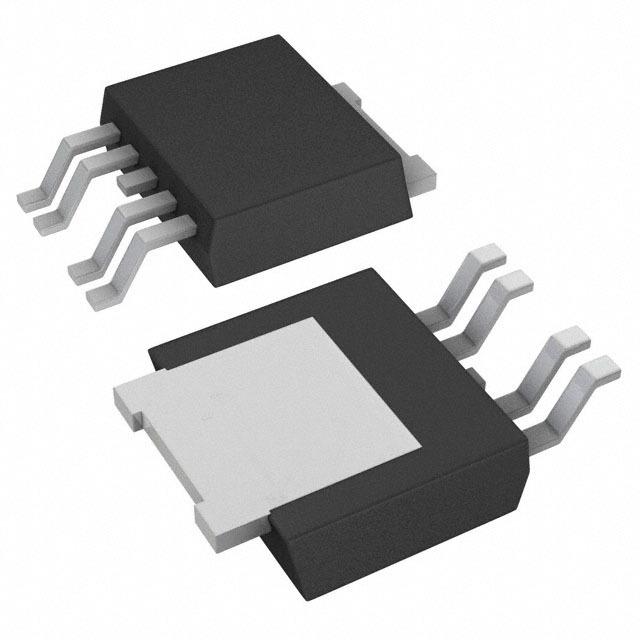

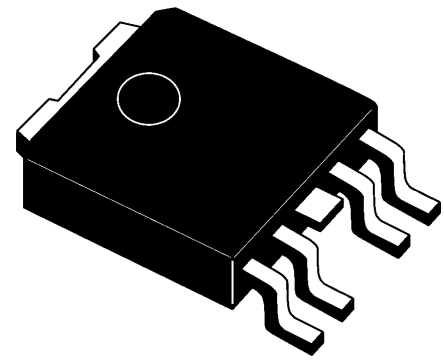

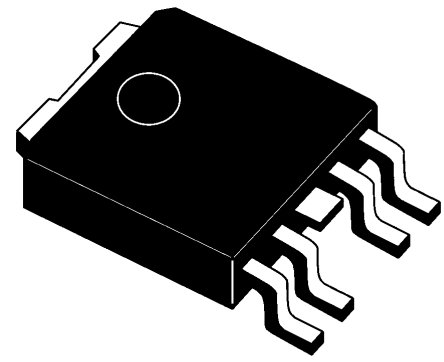

封装 TO-252-5
长度 6.6 mm
宽度 6.2 mm
高度 2.4 mm
封装 TO-252-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
L4931CPT50-TR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
L4931CPT50 意法半导体 | 完全替代 | L4931CPT50-TR和L4931CPT50的区别 |
