TEXAS INSTRUMENTS LP38691SD-ADJ/NOPB. 芯片, 可调稳压器, LDO, 1.25V 至 9V, 0.5A, LLP6, 整卷
PMIC - 稳压器 - 线性 正 可调式 输出 500mA 6-WSON(3x3)
得捷:
IC REG LIN POS ADJ 500MA 6WSON
立创商城:
LP38691SD-ADJ/NOPB
德州仪器TI:
500-mA, 10-V, adjustable low-dropout voltage regulator
贸泽:
LDO Voltage Regulators 500mA Low Dropout CMOS Linear Reg
e络盟:
LDO Voltage Regulator, Adjustable, 2.7 V to 10 V in, 250 mV drop, 1.25 V to 9 V/0.5A out, WSON-6
艾睿:
This LDO LP38691SD-ADJ/NOPB linear regulator from Texas Instruments gives you control over the voltage levels of your circuit. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.08@100mA|0.43@500mA|0.065@100mA|0.33@500mA|0.045@100mA|0.25@500mA V. This voltage regulation device&s;s single output can produce a current up to 0.5 A. With a small input voltage of 2.7 V and a max of 10 V, this will supply sufficient power to your circuit. With an adjustable output that has a voltage of 1.25 to 9 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 1.8%/ATyp and line regulation of 0.03%/VTyp. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.145@100mA|0.725@500mA|0.11@100mA|0.55@500mA|0.1@100mA|0.45@500mA V.
安富利:
LDO Regulator Pos 1.25V to 9V 0.5A 6-Pin LLP EP T/R
Chip1Stop:
LDO Regulator Pos 1.25V to 9V 0.5A 6-Pin WSON EP T/R
Verical:
LDO Regulator Pos 1.25V to 9V 0.5A 6-Pin WSON EP T/R
Newark:
# TEXAS INSTRUMENTS LP38691SD-ADJ/NOPB LDO Voltage Regulator, Adjustable, 2.7V to 10V in, 250mV drop, 1.25V to 9V/500mA out, WSON-6
罗切斯特:
LDO Regulator Pos 1.25V to 9V 0.5A 6-Pin WSON EP T/R
DeviceMart:
IC REG LDO ADJ .5A 6LLP
Win Source:
Linear Voltage Regulator IC Positive Adjustable 1 Output 1.25 V ~ 9 V 500mA 6-WSON 3x3
输出接口数 1
输出电压 1.25V ~ 9V
输出电流 500 mA
供电电流 55µA ~ 100µA
针脚数 6
静态电流 55.0 µA
输出电容类型 Ceramic
跌落电压 250 mV
调节输出数 1
输入电压Max 10 V
输入电压Min 2.7 V
输出电压Max 9 V
输出电压Min 1.25 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 2.7V ~ 10V
安装方式 Surface Mount
引脚数 6

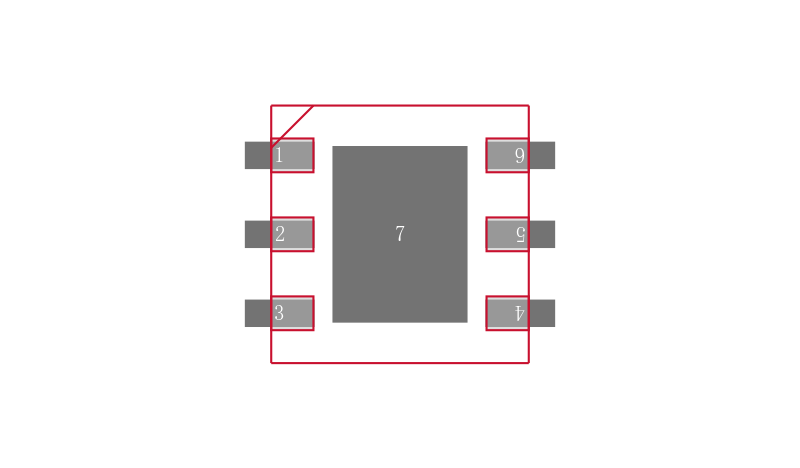

封装 WSON-6
高度 0.8 mm
封装 WSON-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP38691SD-ADJ/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP38691SD-ADJ 德州仪器 | 完全替代 | LP38691SD-ADJ/NOPB和LP38691SD-ADJ的区别 |
LP38693QSD-ADJ/NOPB 德州仪器 | 类似代替 | LP38691SD-ADJ/NOPB和LP38693QSD-ADJ/NOPB的区别 |
LP38693QSDX-ADJ/NOPB 德州仪器 | 类似代替 | LP38691SD-ADJ/NOPB和LP38693QSDX-ADJ/NOPB的区别 |
