L5150CS

低压差稳压器 5V MULTIFUNCTION LDO

PMIC - 稳压器 - 线性 正 固定 1 输出 150mA 8-SO

得捷:
IC REG LINEAR 5V 150MA 8SO

贸泽:
低压差稳压器 5V MULTIFUNCTION LDO

艾睿:

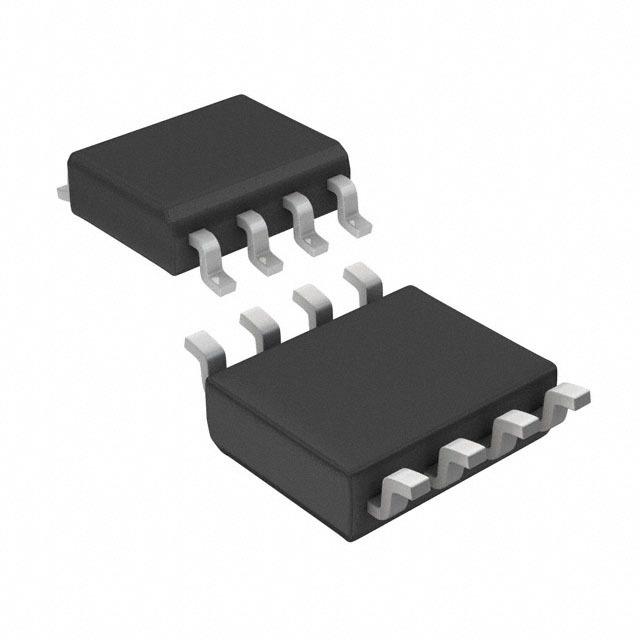

This LDO L5150CS linear regulator from STMicroelectronics acts like a variable resistor to maintain a steady voltage level. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.15 A. The best way to provide power to your application is by using this, which needs a voltage of at least 5.6 V and no higher than 31 V. With a fixed output that has a voltage of 5 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 40mV and line regulation of 40mV. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its polarity is positive. The maximum dropout voltage is 0.5@150mA V. This voltage regulation device has an operating temperature range of -40 °C to 150 °C.
