LD39150DT33-R

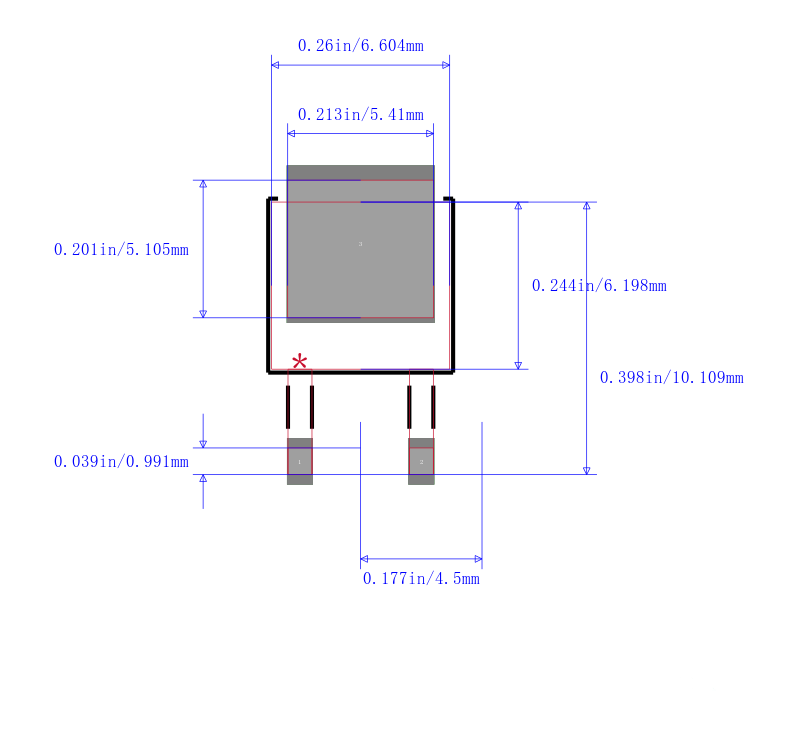

LD39150 系列 6 V 1.5 A 超低压差 BiCMOS 稳压器 - DPAKTO-252

PMIC - 稳压器 - 线性 正 固定 1 输出 1.5A DPAK

欧时:
STMicroelectronics, LD39150DT33-R

得捷:
IC REG LINEAR 3.3V 1.5A DPAK

立创商城:
正 Vin=6V Vout=3.3V 1.5A 65dB

贸泽:
低压差稳压器 Bicmos Vltg Regulatr Ultra Lo Drop

艾睿:
Never worry about components seeing unstable voltages again by implementing this LDO LD39150DT33-R linear regulator manufactured by STMicroelectronics. It has an overall accuracy of ±1.5 %. Its typical dropout voltage at current is 0.04@300mA|0.2@1500mA V. This voltage regulation device&s;s single output can produce a current up to 1.5 A. Using the part will provide the power your application needs by requiring a voltage only of 2.5 V and not exceeding a voltage of 6 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Using a load regulation of 0.06%/ATyp and line regulation of 0.04%Typ is needed for a programmable DC power supply. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive. The maximum dropout voltage is 0.08@300mA|0.4@1500mA V.

安富利:
LDO Regulator Pos 3.3V 1.5A 3-Pin2+Tab DPAK T/R

富昌:
LD39150 系列 6 V 1.5 A 超低压差 BiCMOS 稳压器 - DPAKTO-252

Chip1Stop:
LDO Regulator Pos 3.3V 1.5A 3-Pin2+Tab DPAK T/R

Verical:
LDO Regulator Pos 3.3V 1.5A 3-Pin2+Tab DPAK T/R

儒卓力:
**ULTRA LDO 3.3V 1.5A DPAK **

DeviceMart:
IC REG LDO 3.3V 1.5A D-PAK
