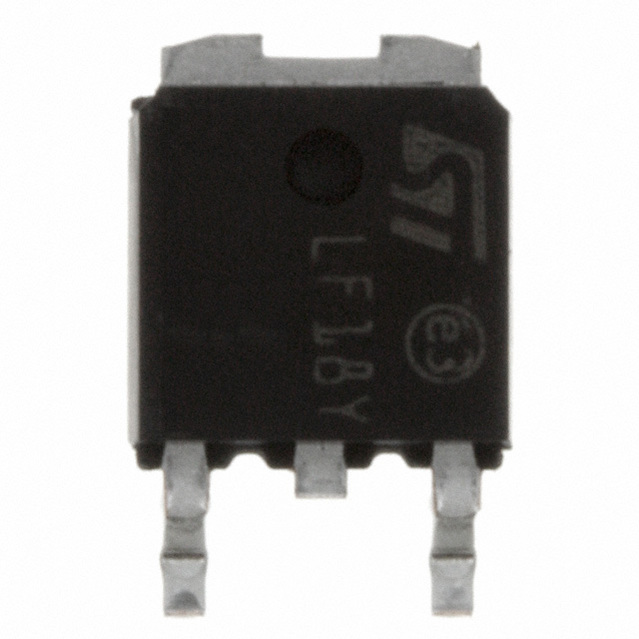

非常低压降稳压器与抑制 Very low drop voltage regulators with inhibit
PMIC - 稳压器 - 线性 正 固定 1 输出 500mA DPAK
得捷:
IC REG LINEAR 1.8V 500MA DPAK
贸泽:
Linear Voltage Regulators VLDV Reg Inhibit 0.45V 50uA 500mA
艾睿:
Stable power is ideal for better processing this LDO LF18CDT-TRY linear regulator developed by STMicroelectronics will help do so. Its typical dropout voltage at current is 0.2@200mA|0.4@500mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.5 A. By only needing an input voltage of 3 V with a maximum of 16 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 1.8 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 15mV and line regulation of 15mV. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 1.3@200mA|1.3@500mA V. Its polarity is positive.
DeviceMart:
IC REG LDO 1.8V .5A DPAK
Win Source:
IC REG LDO 1.8V 0.5A DPAK
输出接口数 1
输出电压 1.8 V
输出电流 500 mA
供电电流 2mA ~ 12mA
跌落电压 0.4V @500mA
输入电压Max 16 V
输入电压Min 3 V
输出电压Min 1.8 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min 40 ℃
精度 ±2 %
输入电压 3V ~ 16V
安装方式 Surface Mount
引脚数 3
封装 TO-252-3
封装 TO-252-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LF18CDT-TRY ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
LF18ABDT-TR 意法半导体 | 类似代替 | LF18CDT-TRY和LF18ABDT-TR的区别 |
LF18CDT-TR 意法半导体 | 类似代替 | LF18CDT-TRY和LF18CDT-TR的区别 |
LD29080DT18R 意法半导体 | 类似代替 | LF18CDT-TRY和LD29080DT18R的区别 |
