监控电路 Active low Reset IC with Programmable Delay and 1% Reset Threshold 5-SOT-23
Have an extra layer of protection from under and overvoltage conditions in a circuit, keeping all your components safe with this voltage monitor voltage monitor IC from Texas Instruments. This device has a maximum power dissipation of 300 mW. Its maximum power dissipation is 300 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This voltage supervisor IC has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a typical reset threshold voltage of 2.75 V, with a minimum of 2.7225 V and a maximum of 2.7775 V. This device has a minimum operating supply voltage of 0.5 V and a maximum of 5.5 V.
电源电压DC 500mV min
供电电流 30.0 µA
耗散功率 300 mW
静态电流 16.0 µA
阈值电压 2.75 V
复位电压Min 2.7225 V
复位电压Max 2.7775 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 300 mW
电源电压Max 5.5 V
安装方式 Surface Mount
引脚数 5

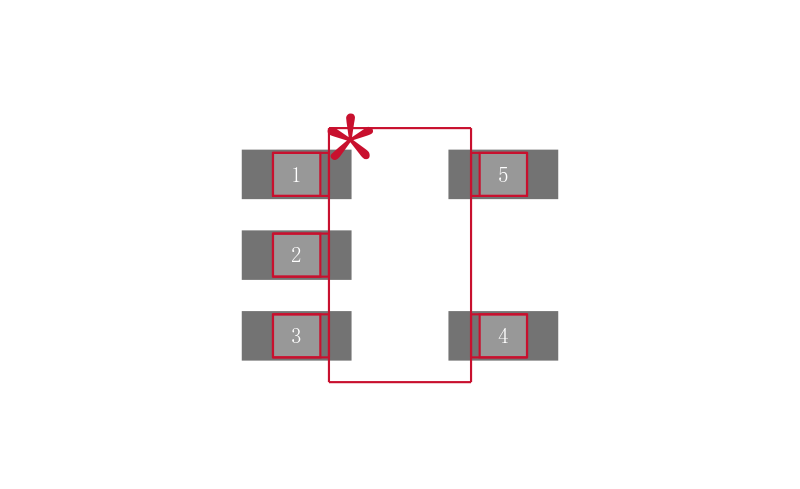

封装 SOT-23-5
长度 2.92 mm
宽度 1.6 mm
高度 1.02 mm
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP3470IM5-2.75/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP3470IM5-2.75 德州仪器 | 完全替代 | LP3470IM5-2.75/NOPB和LP3470IM5-2.75的区别 |
LP3470IM5X-2.75/NOPB 德州仪器 | 完全替代 | LP3470IM5-2.75/NOPB和LP3470IM5X-2.75/NOPB的区别 |
