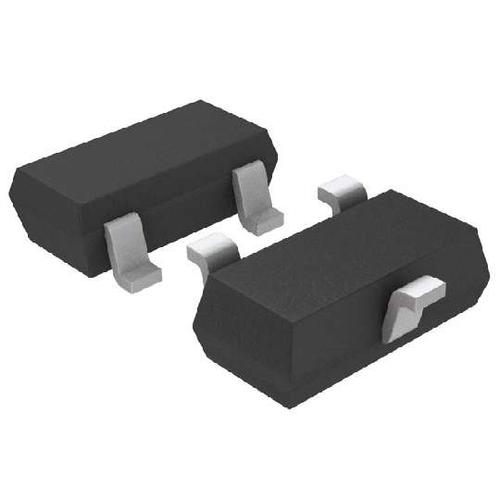

TEXAS INSTRUMENTS LM4041BIDBZR 芯片, 分流电压基准, 1.233V, 2.5MV, 3-SOT-23, 整卷
Even in the event of large power supply variations, this voltage reference power management device from Texas Instruments can produce and maintain a precise DC voltage. With a voltage no larger than 15 V, this will supply sufficient power to your circuit. With an output that has a voltage of 1.225 to 10 V, this is power management at its best. It has an initial accuracy of 0.2%. Operate at a constant current by utilizing the load regulation of 4mV. This voltage reference circuit supports shunt topology. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This voltage reference circuit has a minimum operating temperature of -40 °C and a maximum of 85 °C. It runs with a maximum temperature coefficient of 20ppm/°CTyp.
容差 ±0.2 %
输入电压DC 10.0 V
输出电压 1.225V ~ 10V
输出电流 12 mA
通道数 1
针脚数 3
输入电压Max 15 V
输入电压Min 10 V
输出电压Max 10 V
输出电压Min 1.233 V
输出电流Max 12 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 4 mV
输入电压 10 V
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
长度 2.92 mm
宽度 1.3 mm
高度 1 mm
封装 SOT-23-3
工作温度 -40℃ ~ 85℃ TA
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM4041BIDBZR TI 德州仪器 | 当前型号 | 当前型号 |
LM4041CIDBZR 德州仪器 | 完全替代 | LM4041BIDBZR和LM4041CIDBZR的区别 |
LM4041CIDBZT 德州仪器 | 完全替代 | LM4041BIDBZR和LM4041CIDBZT的区别 |
LM4041BIDBZT 德州仪器 | 完全替代 | LM4041BIDBZR和LM4041BIDBZT的区别 |
