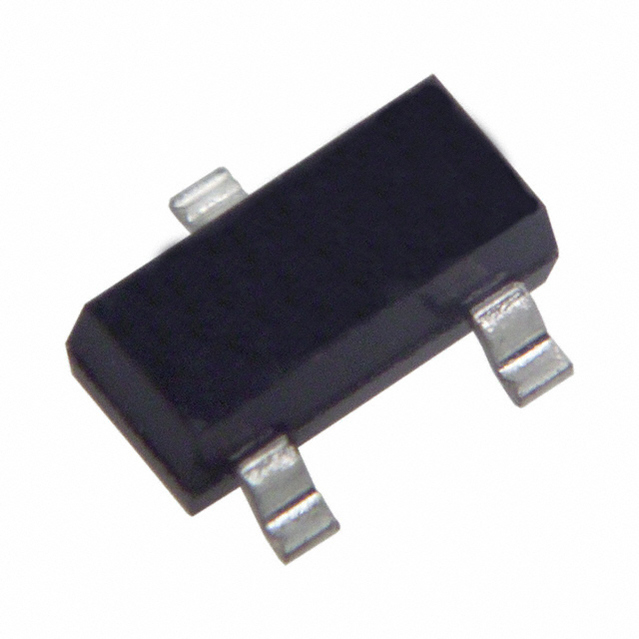

TEXAS INSTRUMENTS LM4040B30IDBZR 芯片, 电压基准, 3V, SOT-23-3, 整卷
The LM4040 series precision micropower shunt Voltage Reference for use with energy management. The LM4040 series of shunt voltage reference is versatile, easy-to-use reference that caters to a vast array of applications. The 2-pin fixed-output device requires no external capacitors for operation and is stable with all capacitive loads. Additionally, the reference offers low dynamic impedance, low noise and low temperature coefficient to ensure a stable output voltage over a wide range of operating currents and temperatures. The LM4040 uses fuse and zener-zap reverse breakdown voltage trim during wafer sort to offer four output voltage tolerances, ranging from 0.1% maximum for the A grade to 1% maximum for the D grade. The LM4040xI is characterized for operation over an ambient temperature range of -40 to 85°C. The LM4040xQ is characterized for operation over an ambient temperature range of -40 to 125°C.
容差 ±0.2 %
输出电压 3 V
输出电流 15 mA
通道数 1
针脚数 3
输出电压Max 3 V
输出电压Min 3 V
输出电流Max 15 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±0.2 %
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
封装 SOT-23-3
工作温度 -40℃ ~ 85℃ TA
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM4040B30IDBZR TI 德州仪器 | 当前型号 | 当前型号 |
LM4040B30IDBZRG4 德州仪器 | 完全替代 | LM4040B30IDBZR和LM4040B30IDBZRG4的区别 |
LM4040B30IDBZT 德州仪器 | 完全替代 | LM4040B30IDBZR和LM4040B30IDBZT的区别 |
LM4040C30IDBZR 德州仪器 | 类似代替 | LM4040B30IDBZR和LM4040C30IDBZR的区别 |
