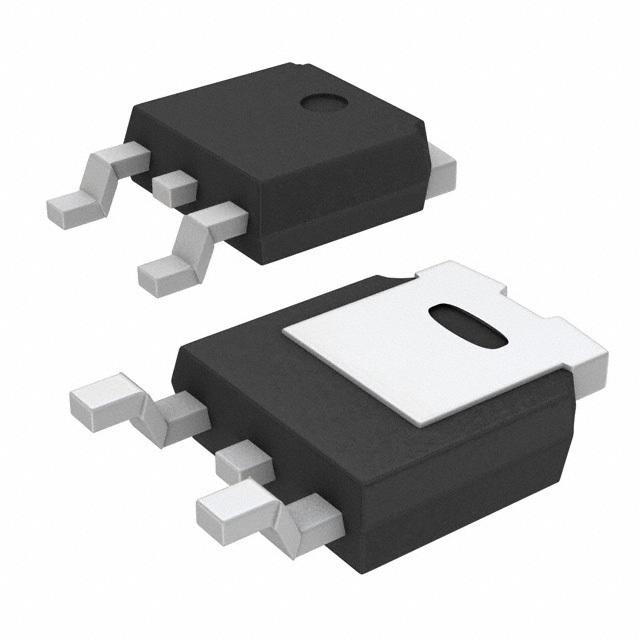

LF50ABDT-TRY

非常低压降稳压器与抑制 Very low drop voltage regulators with inhibit

PMIC - 稳压器 - 线性 正 固定 1 输出 500mA DPAK

得捷:
IC REG LINEAR 5V 500MA DPAK

立创商城:
LF50ABDT-TRY

贸泽:
线性稳压器 VLDV Reg Inhibit 0.45V 50uA 500mA

e络盟:
固定LDO稳压器, AEC-Q100, 最高16V, 400mV压降, 5V/500mA输出, TO-252-3

艾睿:
This LDO LF50ABDT-TRY linear regulator from STMicroelectronics acts like a variable resistor to maintain a steady voltage level. Its typical dropout voltage at current is 0.2@200mA|0.4@500mA V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.5 A. Supply your circuit with sufficient power by implementing this, which does not exceed 16 V. With a fixed output that has a voltage of 5 V, this is power management at its best. At a load regulation of 28mV and line regulation of 28mV a constant current can be produced at the output of your circuit. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 1.3@200mA|1.3@500mA V.

Chip1Stop:
LDO Regulator Pos 5V 0.5A Automotive 3-Pin2+Tab DPAK T/R

DeviceMart:
IC REG LDO 5V .5A DPAK

Win Source:
IC REG LDO 5V 0.5A DPAK
