LDO(低压降)线性稳压器,最大 100mA,4.0V 至 15V,Texas Instruments### LDO(低压降)线性稳压器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
LDO(低压降)线性稳压器,最大 100mA,4.0V 至 15V,Texas Instruments
### LDO(低压降)线性稳压器,Texas Instruments
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
欧时:

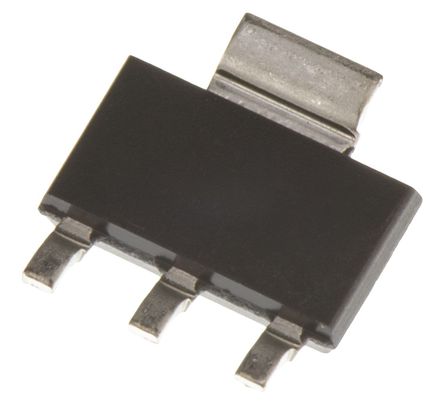

Texas Instruments LM2936MP-5.0/NOPB LDO 稳压器, 5 V输出, 50mA最大输出, ±2%精确度, 4 → 40 V输入
得捷:
IC REG LINEAR 5V 50MA SOT223-4
立创商城:
正 Vin=40V Vout=5V 50mA 60dB@120Hz
德州仪器TI:
50-mA, 60-V, low-IQ, low-dropout voltage regulator with reverse voltage protection
e络盟:
固定电压稳压器, LDO, 5.5V至40V, 200mV压差, 5V输出, 50mA输出, SOT-223-3
艾睿:
Keep the energy stable for every system by using this LDO LM2936MP-5.0/NOPB linear regulator by Texas Instruments. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.05@100uA|0.2@50mA V. This voltage regulation device&s;s single output can produce a current up to 0.05 A. The best way to provide power to your application is by using this, which needs a voltage of at least 4 V and no higher than 40 V. With a fixed output that has a voltage of 5 V, this is power management at its best. A load regulation of 30mV and line regulation of 30mV is necessary for providing a constant voltage level at your output. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.1@100uA|0.4@50mA V.
安富利:
LDO Regulator Pos 5V 0.05A 4-Pin3+Tab SOT-223 T/R
TME:

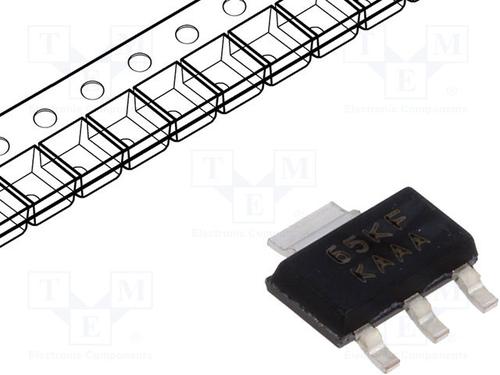

Voltage regulator; LDO, fixed; 5V; 0.05A; SOT223; SMD; Channels:1
Verical:
LDO Regulator Pos 5V 0.05A Automotive 4-Pin3+Tab SOT-223 T/R
Newark:
# TEXAS INSTRUMENTS LM2936MP-5.0/NOPB Fixed LDO Voltage Regulator, 5.5V to 40V, 200mV Dropout, 5Vout, 50mAout, SOT-223-3
DeviceMart:
IC REG LDO 5V 50MA SOT223-4
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 5V 50mA SOT-223-4
电源电压DC 60.0V max
额定电流 50.0 mA
输出接口数 1
输入电压DC 60.0V max
输出电压 5 V
输出电流 50 mA
供电电流 9µA ~ 2.5mA
通道数 1
针脚数 3
静态电流 0.009 mA
跌落电压 200 mV
调节输出数 1
输入电压Max 40 V
输入电压Min 5.5 V
输出电压Min 5 V
输出电流Max 0.05 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
电源电压Max 60 V
电源电压Min 5.5 V
输入电压 40V ~ 4V
安装方式 Surface Mount
引脚数 4
封装 TO-261-4
长度 6.5 mm
宽度 3.56 mm
高度 1.6 mm
封装 TO-261-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用, 自动化与过程控制, 工业, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2936MP-5.0/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM2936MP-5.0 德州仪器 | 完全替代 | LM2936MP-5.0/NOPB和LM2936MP-5.0的区别 |
LM2936QMPX-5.0/NOPB 德州仪器 | 类似代替 | LM2936MP-5.0/NOPB和LM2936QMPX-5.0/NOPB的区别 |
LM2936MPX-5.0/NOPB 德州仪器 | 类似代替 | LM2936MP-5.0/NOPB和LM2936MPX-5.0/NOPB的区别 |
