LM2937 500毫安低压差稳压器 LM2937 500 mA Low Dropout Regulator

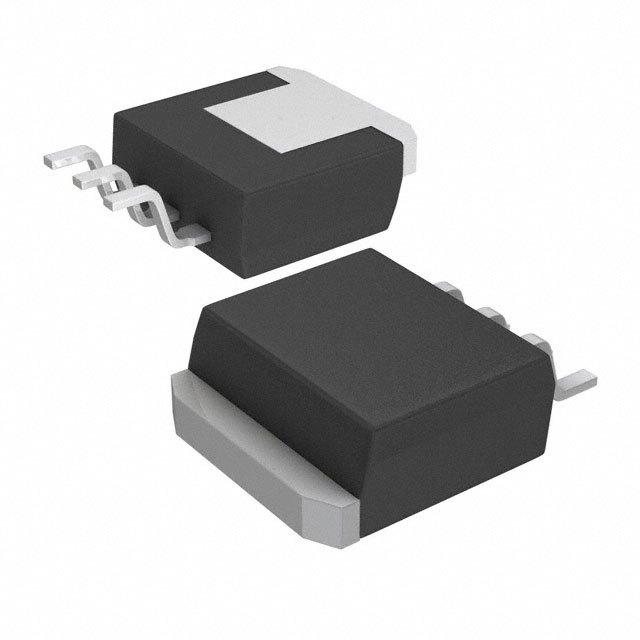

Linear Voltage Regulator IC 1 Output 500mA DDPAK/TO-263-3
立创商城:
LM2937ESX-15/NOPB
德州仪器TI:
500-mA, 26-V, high-PSRR, low-dropout voltage regulator
得捷:
IC REG LIN 15V 500MA DDPAK
贸泽:
低压差稳压器 500 mA Low Dropout Regulator 3-DDPAK/TO-263 -40 to 125
艾睿:
Stable power is ideal for better processing this LDO LM2937ESX-15/NOPB linear regulator developed by Texas Instruments will help do so. Its typical dropout voltage at current is 0.11@50mA|0.5@500mA V. It has an overall accuracy of ±5 %. This voltage regulation device&s;s single output can produce a current up to 0.5 A. The best way to provide power to your application is by using this, which needs a voltage lower than 26 V. With a fixed output that has a voltage of 15 V, this is power management at its best. At a load regulation of 15mVTyp and line regulation of 45mVTyp your circuit is capable of maintaining a constant voltage level at your output. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.25@50mA|1@500mA V.
安富利:
LDO Regulator Pos 15V 0.5A 4-Pin3+Tab TO-263 T/R
Verical:
LDO Regulator Pos 15V 0.5A Automotive 4-Pin3+Tab TO-263 T/R
DeviceMart:
IC REG LDO 15V .5A TO-263
输出接口数 1
输出电压 15 V
输出电流 500 mA
供电电流 2mA ~ 20mA
静态电流 10 mA
输出电容类型 Ceramic
跌落电压 0.11V @50mA,0.5V @500mA
调节输出数 1
输入电压Max 26 V
输入电压Min 6 V
输出电压Min 15 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±5 %
输入电压 26 V
安装方式 Surface Mount
引脚数 4

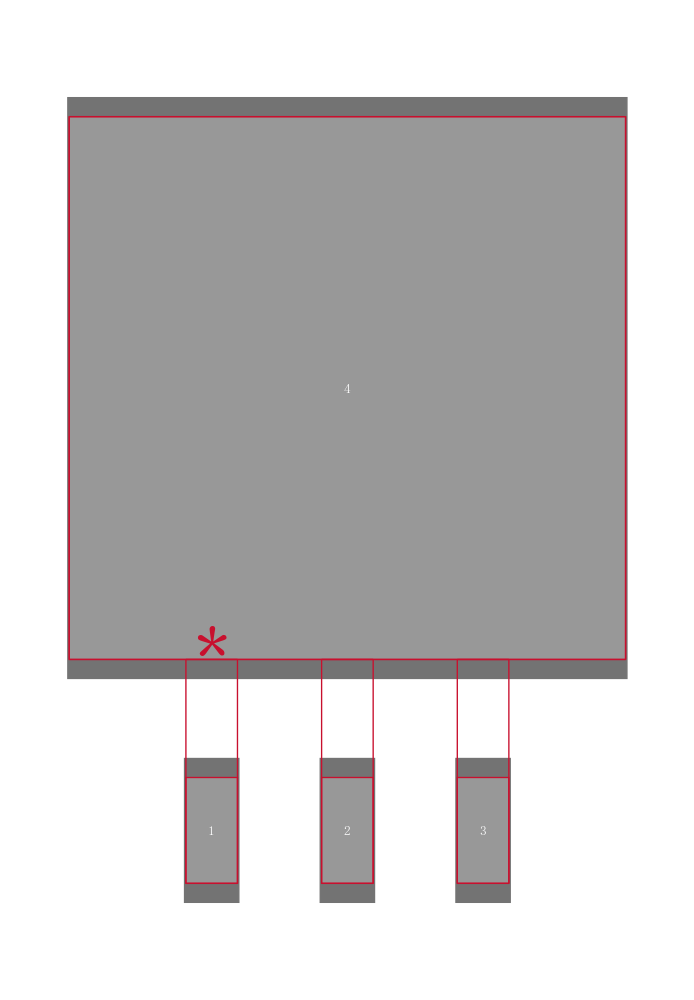

封装 TO-263-4
封装 TO-263-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2937ESX-15/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM2937ES-15 德州仪器 | 类似代替 | LM2937ESX-15/NOPB和LM2937ES-15的区别 |
LM2937ESX-15 德州仪器 | 类似代替 | LM2937ESX-15/NOPB和LM2937ESX-15的区别 |
LM2937ES-15/NOPB 德州仪器 | 功能相似 | LM2937ESX-15/NOPB和LM2937ES-15/NOPB的区别 |
