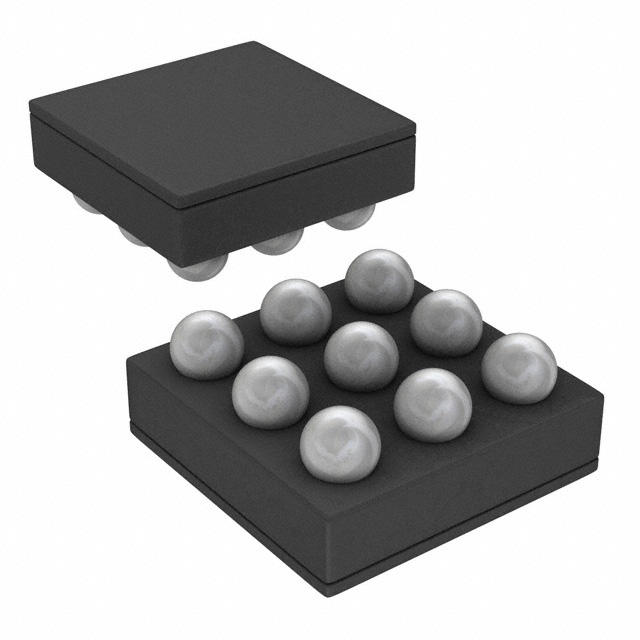

LM4995TMX/NOPB

1.3W 音频功率放大器 9-DSBGA -40 to 85

* Available in Space-Saving 0.4mm Pitch DSBGA Package * Ultra Low Current Shutdown Mode * BTL Output Can Drive Capacitive Loads * Improved Click and Pop Circuitry Eliminates Noise during Turn-On and Turn-Off Transitions * 2.4 - 5.5V Operation * No Output Coupling Capacitors, Snubber Networks or Bootstrap Capacitors Required * Unity-Gain Stable * External Gain Configuration Capability * WSON Package: 0.5mm Pitch, 3 x 3 mm * PSRR at 3.6V 217Hz & 1kHz: 75 dB * Output Power at 5.0V, 1% THD+N, 8Ω: 1.3 W typ * Output Power at 3.6V, 1% THD+N, 8Ω:625 mW typ * Shutdown Current: 0.01µA typ
