具有使能功能的 250mA、16V、低压降稳压器 5-SOT-23 -40 to 125
PMIC - 稳压器 - 线性 正 固定 1 输出 250mA SOT-23-5
得捷:
IC REG LINEAR 2.5V 250MA SOT23-5
贸泽:
LDO Voltage Regulators R 926-LP2992IM525NOPB
艾睿:
Never worry about components seeing unstable voltages again by implementing this LDO LP2992IM5-2.5 linear regulator manufactured by Texas Instruments. It has an overall accuracy of ±4 %. Its typical dropout voltage at current is 0.005@1mA|0.1@50mA|0.26@150mA|0.45@250mA V. This voltage regulation device&s;s single output can produce a current up to 0.25 A. It only needs a voltage of at least 2.2 V while not exceeding 16 V to effectively power your circuit. With a fixed output that has a voltage of 2.5 V, this is power management at its best. Maintain a constant voltage level with a line regulation of 0.014%/V. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. The maximum dropout voltage is 0.009@1mA|0.125@50mA|0.325@150mA|0.575@250mA V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.
Chip1Stop:
LDO Regulator Pos 2.5V 0.25A 5-Pin SOT-23 T/R
输出接口数 1
输入电压DC 16.0V max
输出电压 2.5 V
输出电流 250 mA
静态电流 65.0 µA
输出电容类型 Ceramic
跌落电压 450 mV
调节输出数 1
输入电压Max 16 V
输入电压Min 2.2 V
输出电流Max 0.25 A
工作温度Max 125 ℃
工作温度Min 40 ℃
精度 ±4 %
输入电压 ≤16 V
安装方式 Surface Mount
引脚数 5

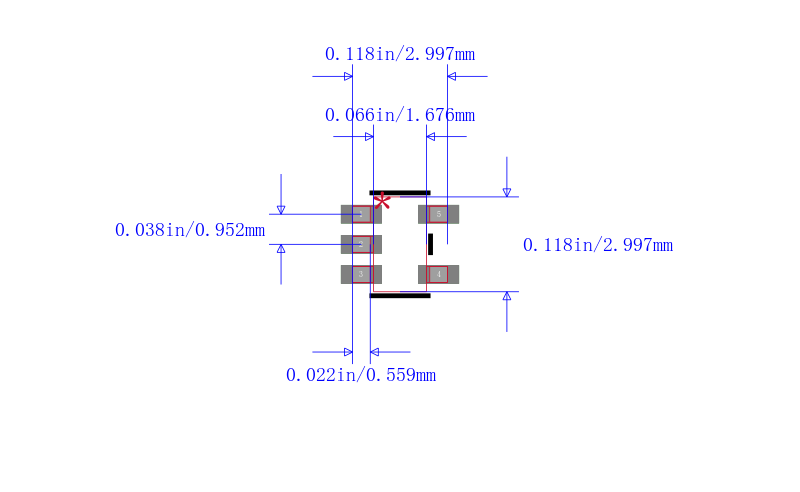

封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP2992IM5-2.5 TI 德州仪器 | 当前型号 | 当前型号 |
LP2992IM5-2.5/NOPB 德州仪器 | 类似代替 | LP2992IM5-2.5和LP2992IM5-2.5/NOPB的区别 |
LP2992IM5X-2.5/NOPB 德州仪器 | 类似代替 | LP2992IM5-2.5和LP2992IM5X-2.5/NOPB的区别 |
LP2992IM5X-2.5 德州仪器 | 类似代替 | LP2992IM5-2.5和LP2992IM5X-2.5的区别 |
