LP38502ATJ-ADJ/NOPB

TEXAS INSTRUMENTS  LP38502ATJ-ADJ/NOPB  电压稳压器, LDO, 可调, 2.7V至5.5V输入, 220mV压差, 600mV至5V/1.5A输出, TO-263-5

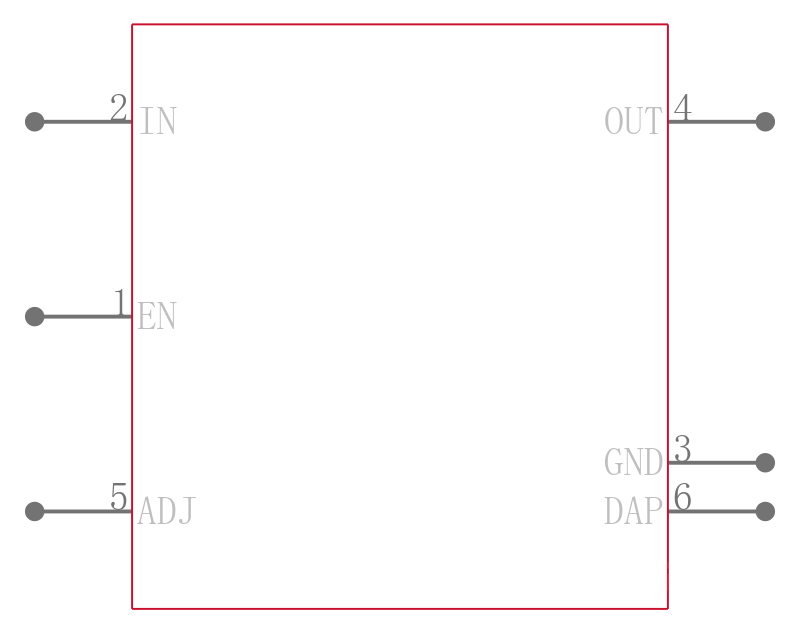

The is a single channel, FlexCap adjustable output low dropout LDO linear regulator in 5 pin TO-263 package. This FlexCap regulator has unique compensation that allows use of any type of output capacitor with no limits on minimum or maximum equivalent series resistance ESR. It responds very quickly to step changes in load which make the device suitable for low voltage microprocessor applications. Developed on a CMOS process utilizing a PMOS pass transistor the LP38502ATJ-ADJ has low quiescent currents that changes little with load current. This device is featured with enable pin.

.

Adjustable output voltage range from 0.6V to 5V

.

Output current of 1.5A

.

Input supply voltage range from 2.7V to 5.5V

.

Dropout voltage of 220mV at 1.5A output current

.

Stable with ceramic, tantalum or aluminium FlexCap capacitors

.

Stable with 10µF input and output capacitors

.

Low ground pin current

.

25nA quiescent current in shutdown mode

.

Overtemperature and overcurrent protection

.

Operating temperature range from -40°C to 125°C

This device has limited built-in ESD protection. The leads should be shorted or device should be placed in conductive foam during storage or handling to prevent electrostatic damage to MOS gates.
