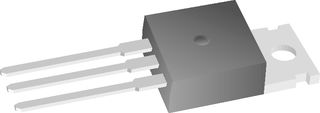

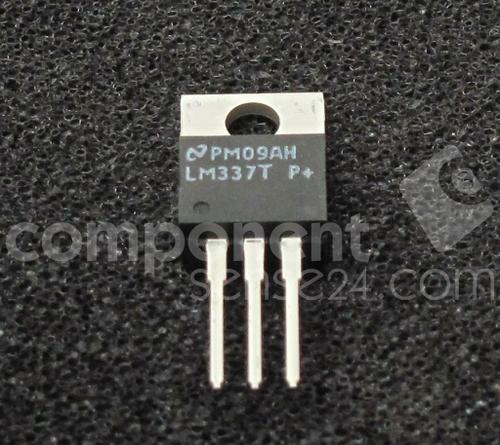

TEXAS INSTRUMENTS  LM337T  芯片, 稳压器 可调 -1.2/37V

The is an adjustable 3-terminal Negative Voltage Regulator, capable of supplying in excess of -1.5A over an output voltage range of -1.2V to -37V. This regulator is exceptionally easy to apply, requiring only 2 external resistors to set the output voltage and 1 output capacitor for frequency compensation. The circuit design has been optimized for excellent regulation and low thermal transients. Further, the LM137 series features internal current limiting, thermal shutdown and safe-area compensation, making them virtually blowout-proof against overloads. The LM337T serves a wide variety of applications including local on-card regulation, programmable-output voltage regulation or precision current regulation. The LM337T is ideal complements to the LM117/LM317 adjustable positive regulators.

.

Output voltage adjustable from -1.2 to -37V

.

1.5A Output current specified, -55 to +150°C

.

Line regulation typically 0.01%/V

.

Load regulation typically 0.3%

.

0.002%/W Excellent thermal regulation

.

77dB Ripple rejection

.

Excellent rejection of thermal transients

.

50ppm/°C Temperature coefficient

.

Temperature-independent current limit

.

Internal thermal overload protection

.

P+ Product enhancement tested

.

Short-circuit protection for output

Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
