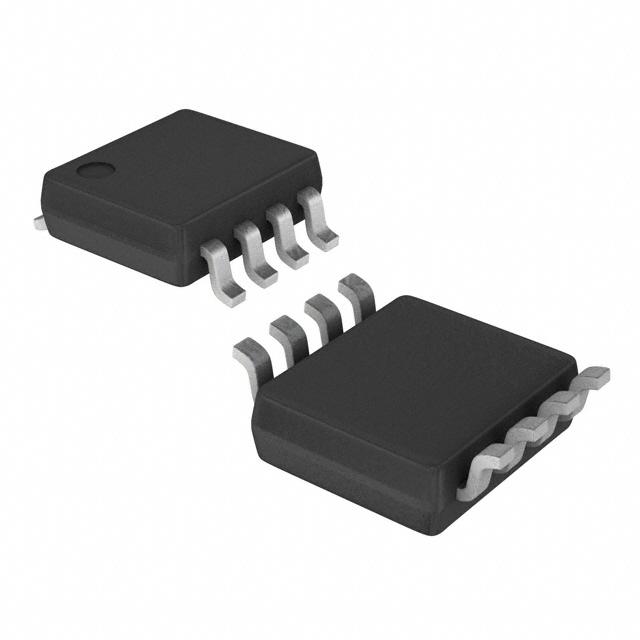

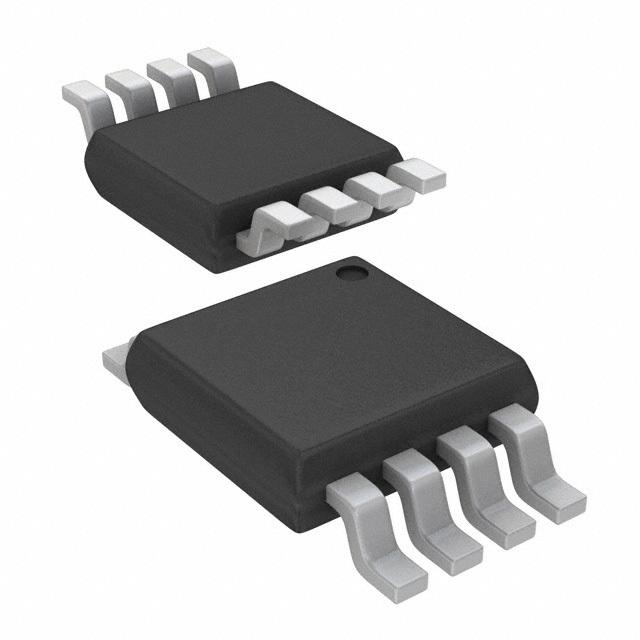

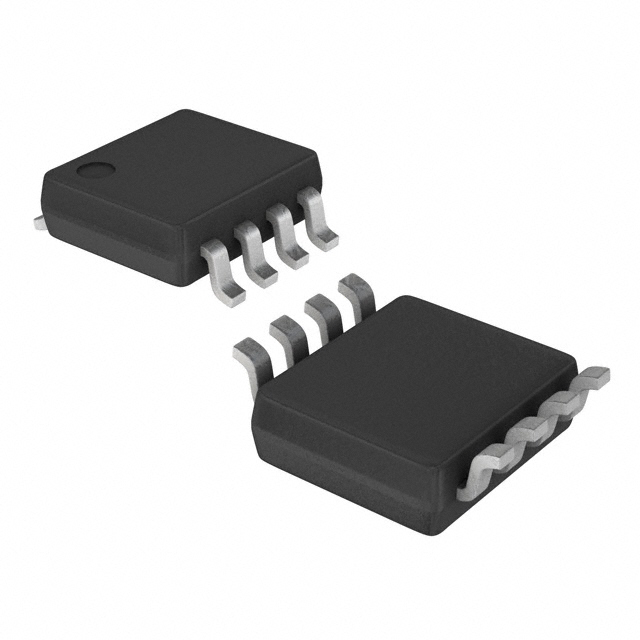

开关电容器倍压逆变器 8-VSSOP -40 to 85
DESCRIPON
The LM2682 is a CMOS charge-pump voltage inverter capable of converting positive voltage in the range of +2.0V to +5.5V to the corresponding doubled negative voltage of −4.0V to −11.0V
respectively. The LM2682 uses three low cost capacitors to provide 10 mA of output current without the cost, size, and EMI related to inductor based circuits. With an operating current of only 150 μA and an operating efficiency greater than 90% with most loads, the LM2682 provides ideal performance for battery powered systems. The LM2682 offers a switching frequency of 6 kHz.
FEATURES
• Inverts Then Doubles Input Supply Voltage

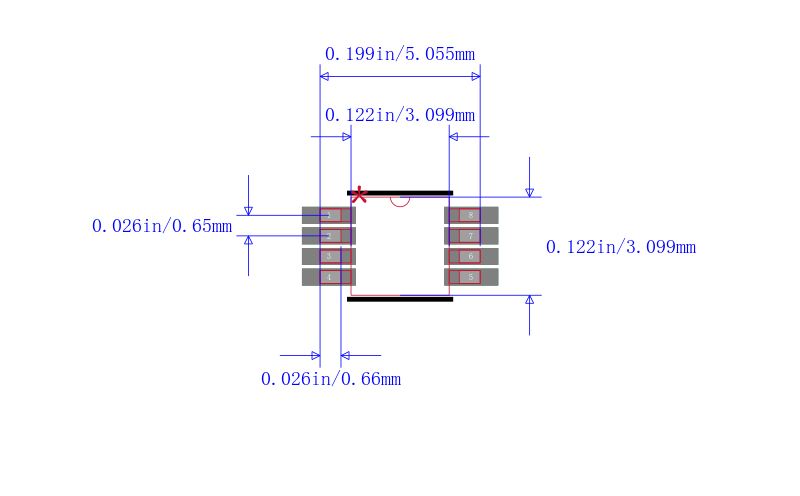

• Small VSSOP Package and SOIC Package
• 90Ω Typical Output Impedance
• 94% Typical Power Efficiency at 10 mA
APPLICATIONS
• LCD Contrast Biasing
• GaAs Power Amplifier Biasing
• Interface Power Supplies
• Handheld Instrumentation
• Laptop Computers and PDAs
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2682MMX/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM2682MM/NOPB 德州仪器 | 功能相似 | LM2682MMX/NOPB和LM2682MM/NOPB的区别 |
LM2682MM 德州仪器 | 功能相似 | LM2682MMX/NOPB和LM2682MM的区别 |
LM2682MMX 德州仪器 | 功能相似 | LM2682MMX/NOPB和LM2682MMX的区别 |
