LV8411GR-TE-L-E

4通道步进电机驱动

The LV8411GR is an H bridge motor driver IC and is able to control 4 modes of forward, reverse, brake, and standby. This IC housed in a miniature package is optimum for use in a stepping motor driving system for DSC or a camera module of cell phones.

Features |   | Benefits

---|---|---

 | |  | |  |

.

Built-in thermal protection circuit

|   |

.

Thermal protection

.

Built-in low voltage malfunction prevention circuit

|   |

.

Low voltage protection

.

Includes a transistor for driving photosensors

|   |

.

Fewer external components

.

Output ON Resistance : 1.2ohm

|   |

.

Upper and Lower Total,High Efficiency

.

Built-in Photo Sensor Drive Transistor

|   |

.

Less External Component

.

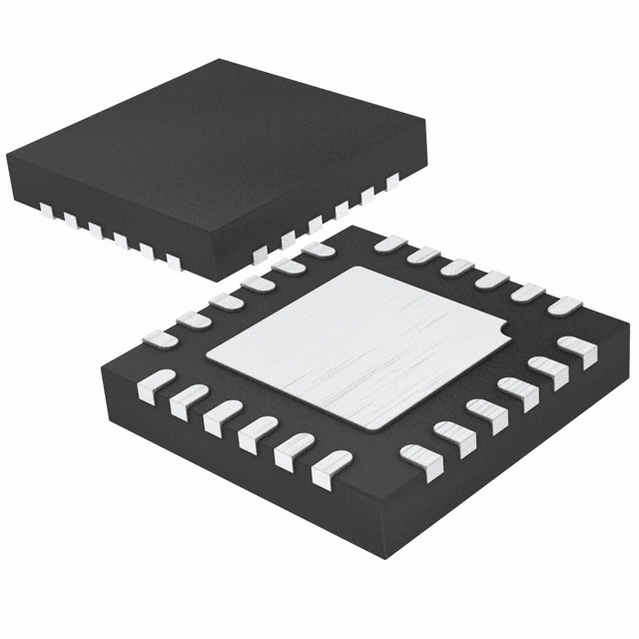

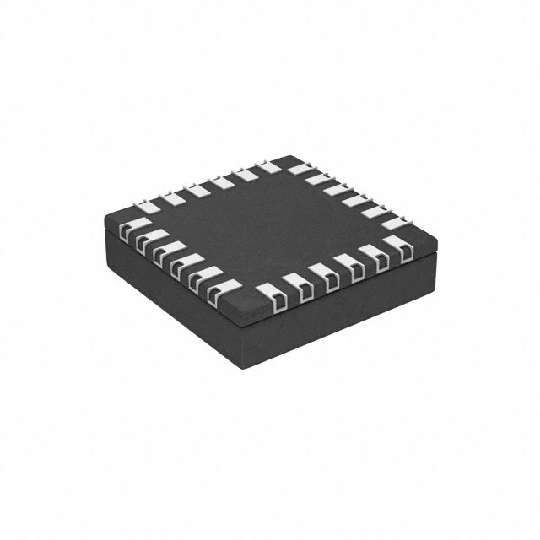

VCT Package 3 x 3mm

|   |

.

Small Design Footprint

.

Saturation drive H bridge: 4 channels

|   |
