800毫安低压差线性稳压器 800mA Low-Dropout Linear Regulator
DESCRIPON
The LM1117-N is a series of low dropout voltage regulators with a dropout of 1.2V at 800mA of load current. It has the same pin-out as Texas Instruments" industry standard LM317.
The LM1117-N is available in an adjustable version, which can set the output voltage from 1.25V to 13.8V with only two external resistors. In addition, it is also available in five fixed voltages, 1.8V, 2.5V, 2.85V, 3.3V, and 5V.
The LM1117-N offers current limiting and thermal shutdown. Its circuit includes a zener trimmed bandgap reference to assure output voltage accuracy to within ±1%.
The LM1117-N series is available in WSON, PFM, SOT-223, TO-220, and TO-263 DDPAK packages. A minimum of 10µF tantalum capacitor is required at the output to improve the transient response and stability.
FEATURES
• Available in 1.8V, 2.5V, 2.85V, 3.3V, 5V, and Adjustable Versions
• Space Saving SOT-223 and WSON Packages
• Current Limiting and Thermal Protection
• Output Current 800mA
• Line Regulation 0.2% Max
• Load Regulation 0.4% Max
• Temperature Range
– LM1117-N: 0°C to 125°C
– LM1117I: −40°C to 125°C
APPLICATIONS
• 2.85V Model for SCSI-2 Active Termination
• Post Regulator for Switching DC/DC Converter
• High Efficiency Linear Regulators
• Battery Charger
• Battery Powered Instrumentation
输出接口数 1
输出电压 1.25V ~ 13.8V
输出电流 800 mA
供电电流 5mA ~ 10mA
静态电流 5.00 mA
输出电容类型 Tantalum
跌落电压 1.2V @800mA
调节输出数 1
输入电压Max 15 V
输入电压Min 2.6 V
输出电压Max 13.8 V
输出电压Min 1.25 V
输出电流Max 0.8 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 15 V
安装方式 Surface Mount
引脚数 8

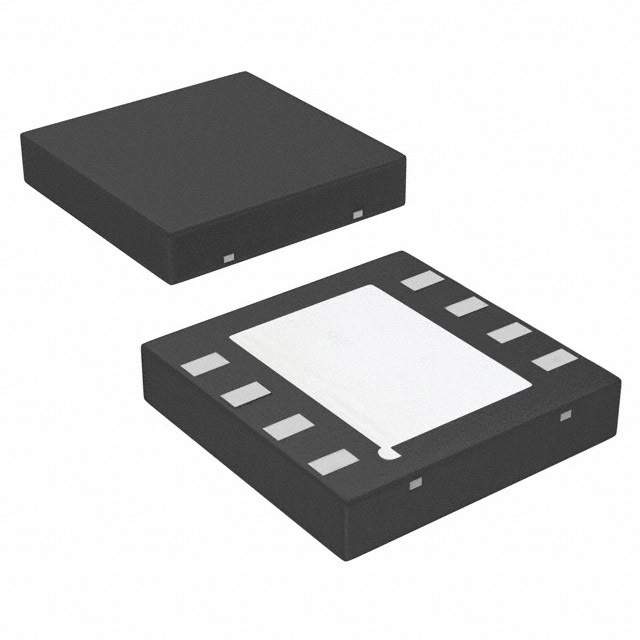

封装 WSON-8
封装 WSON-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM1117ILD-ADJ/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM1117LD-ADJ/NOPB 德州仪器 | 类似代替 | LM1117ILD-ADJ/NOPB和LM1117LD-ADJ/NOPB的区别 |
LM1117ILDX-ADJ/NOPB 德州仪器 | 功能相似 | LM1117ILD-ADJ/NOPB和LM1117ILDX-ADJ/NOPB的区别 |
LM1117LD-ADJ 德州仪器 | 功能相似 | LM1117ILD-ADJ/NOPB和LM1117LD-ADJ的区别 |
