500mA、10V、低压降稳压器 3-TO-252 -40 to 125
Linear Voltage Regulator IC 1 Output 500mA TO-252-3
得捷:
IC REG LINEAR 2.5V 500MA TO252-3
立创商城:
LP38691DTX-2.5/NOPB
德州仪器TI:
500-mA, 10-V, low-dropout voltage regulator
艾睿:
This LDO LP38691DTX-2.5/NOPB linear regulator from Texas Instruments acts like a variable resistor to maintain a steady voltage level. Its typical dropout voltage at current is 0.08@100mA|0.43@500mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.5 A. Use this part at voltages between 2.7 V and 10 V. With a fixed output that has a voltage of 2.5 V, this is power management at its best. At a load regulation of 1.8%/ATyp and line regulation of 0.03%/VTyp a constant current can be produced at the output of your circuit. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. The maximum dropout voltage is 0.145@100mA|0.725@500mA V. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
安富利:
LDO Regulator Pos 2.5V 0.5A 3-Pin2+Tab TO-252 T/R
Chip1Stop:
LDO Regulator Pos 2.5V 0.5A 3-Pin2+Tab TO-252 T/R
Verical:
LDO Regulator Pos 2.5V 0.5A 3-Pin2+Tab TO-252 T/R
DeviceMart:
IC REG LDO 2.5V .5A TO-252
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 2.5V 500mA TO-252-3
输出接口数 1
输出电压 2.5 V
输出电流 500 mA
供电电流 55µA ~ 100µA
静态电流 55.0 µA
输出电容类型 Ceramic
跌落电压 0.43V @500mA
调节输出数 1
输入电压Max 10 V
输入电压Min 2.7 V
输出电压Min 2.5 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 ≤10 V
安装方式 Surface Mount
引脚数 3

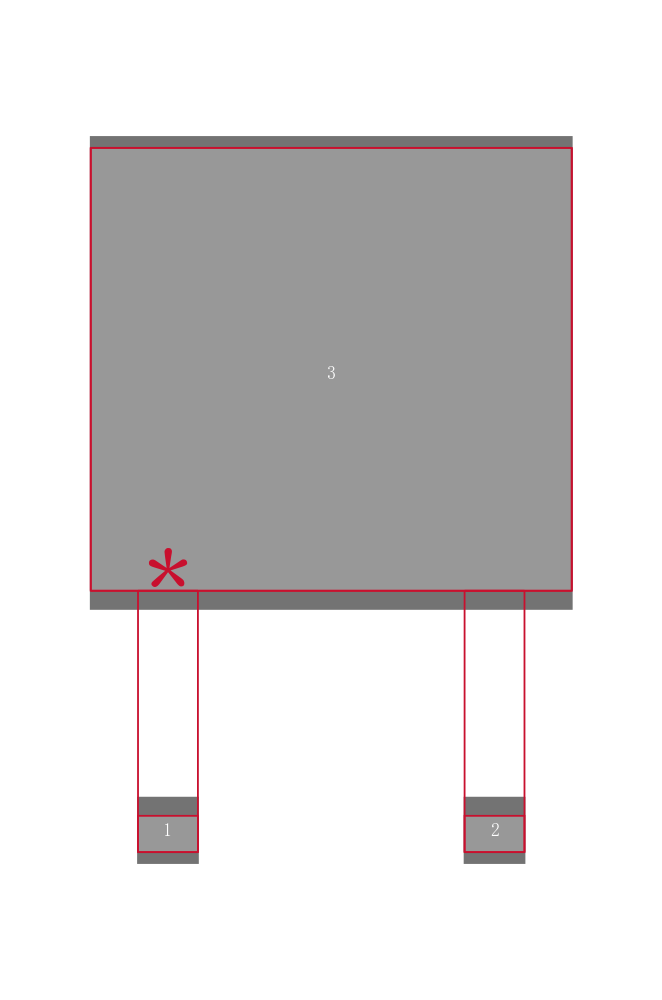

封装 TO-252-3
封装 TO-252-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP38691DTX-2.5/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP38691DT-2.5/NOPB 德州仪器 | 类似代替 | LP38691DTX-2.5/NOPB和LP38691DT-2.5/NOPB的区别 |
LP38691DTX-2.5 德州仪器 | 类似代替 | LP38691DTX-2.5/NOPB和LP38691DTX-2.5的区别 |
