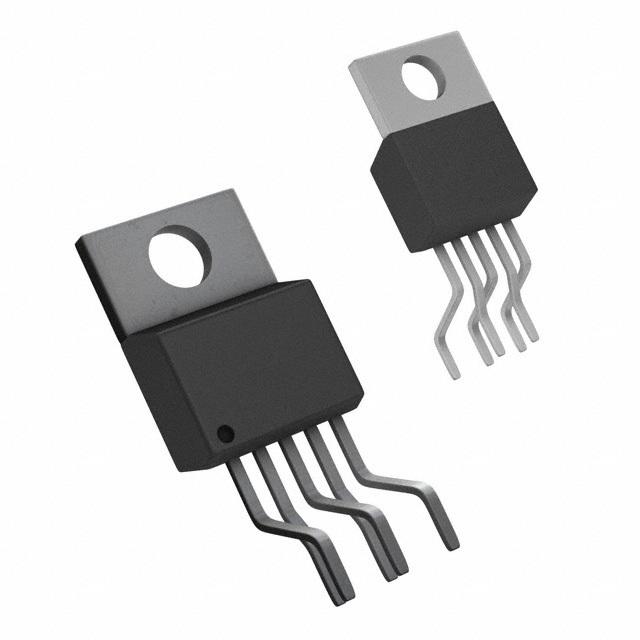

LM2941 / LM2941C 1A低压降稳压器可调 LM2941/LM2941C 1A Low Dropout Adjustable Regulator
PMIC - 稳压器 - 线性 输出 1A TO-220-5
得捷:
IC REG LINEAR POS ADJ 1A TO220-5
立创商城:
LM2941CT/LF03
德州仪器TI:
1-A, 26-V, high-PSRR, adjustable low-dropout voltage regulator with enable from 0°C to 125°C
贸泽:
低压差稳压器 1A Low Dropout Adjustable Regulator 5-TO-220
艾睿:
Keep calm and stay stable by implementing this LDO LM2941CT/LF03 linear regulator developed by Texas Instruments. Its typical dropout voltage at current is 0.11@100mA|0.5@1A V. This voltage regulation device&s;s single output can produce a current up to 1Min A. This will operate at a minimum voltage of -15 V and a maximum voltage of 26 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of 5 to 20 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 10mV/V and line regulation of 10mV/V. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its polarity is positive. This voltage regulation device has an operating temperature range of 0 °C to 125 °C. The maximum dropout voltage is 0.2@100mA|0.8@1A V.
安富利:
LDO Regulator Pos 5V to 20V 1A 5-Pin5+Tab TO-220 Rail
Chip1Stop:
LDO Regulator Pos 5V to 20V 1A 5-Pin5+Tab TO-220 Rail
Verical:
LDO Regulator Pos 5V to 20V 1A 5-Pin5+Tab TO-220 Rail
DeviceMart:
IC REG LDO ADJ 1A TO220
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2941CT/LF03 TI 德州仪器 | 当前型号 | 当前型号 |
LM2941CT 德州仪器 | 完全替代 | LM2941CT/LF03和LM2941CT的区别 |
LM2941T/NOPB 德州仪器 | 类似代替 | LM2941CT/LF03和LM2941T/NOPB的区别 |
LM2941CT/NOPB 德州仪器 | 类似代替 | LM2941CT/LF03和LM2941CT/NOPB的区别 |
