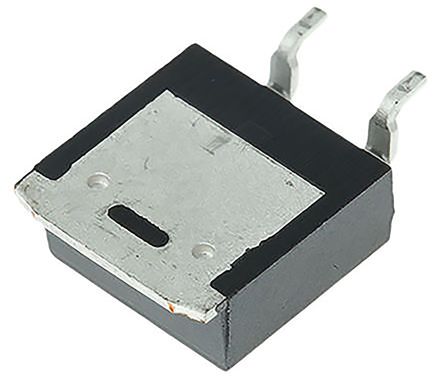

LP38690DT-5.0/NOPB

TEXAS INSTRUMENTS  LP38690DT-5.0/NOPB  固定电压稳压器, LDO, 2.7V至10V, 450mV压差, 5V输出, 1A输出, TO-252-3

LDO（低压降）线性稳压器，1A，LP3869x 系列，Texas Instruments

欧时:
### LDO（低压降）线性稳压器，1A，LP3869x 系列，Texas Instruments### LDO（低压降）线性稳压器，Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

得捷:
IC REG LINEAR 5V 1A TO252-3

立创商城:
LP38690DT-5.0/NOPB

德州仪器TI:
1-A, 10-V, low-dropout voltage regulator

e络盟:
固定电压稳压器, LDO, 2.7V至10V, 450mV压差, 5V输出, 1A输出, TO-252-3

艾睿:
Control the voltage level of your circuit with this LDO LP38690DT-5.0/NOPB linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.045@100mA|0.45@1A V. It has an overall accuracy of ±2.5 %. This voltage regulation device&s;s single output can produce a current up to 1 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.7 V that does not exceed 10 V. With a fixed output that has a voltage of 5 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 1.8%/ATyp and line regulation of 0.03%/VTyp. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. The maximum dropout voltage is 0.1@100mA|0.8@1A V. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.

Jameco:
LDO Regulator Position 5V 1A 3-Pin2+Tab TO-252 Rail

安富利:
LDO Regulator Pos 5V 1A 3-Pin2+Tab TO-252 Rail

Chip1Stop:
LDO Regulator Pos 5V 1A 3-Pin2+Tab TO-252 Rail

Verical:
LDO Regulator Pos 5V 1A 3-Pin2+Tab TO-252 Tube

Newark:
# TEXAS INSTRUMENTS  LP38690DT-5.0/NOPB  Fixed LDO Voltage Regulator, 2.7V to 10V, 450mV Dropout, 5Vout, 1Aout, TO-252-3

DeviceMart:
IC REG LDO 5V 1A TO-252
