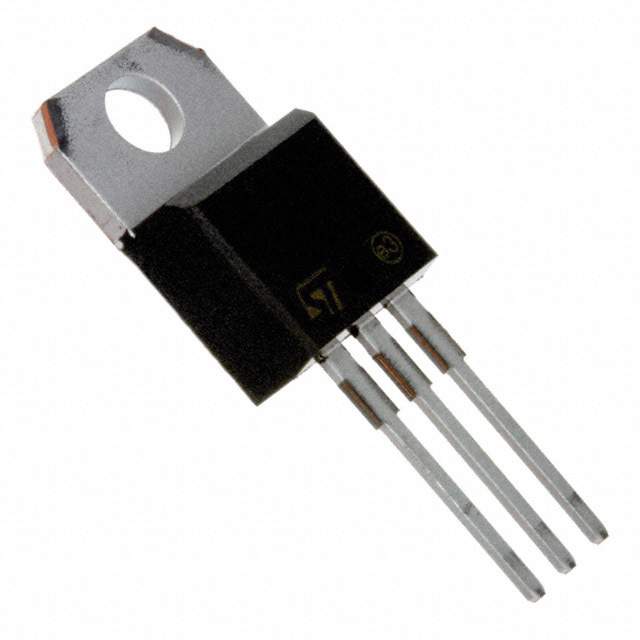

LDO Regulator Pos 1.25V to 15V 1.5A Automotive 3Pin3+Tab TO-220 Tube
Never worry about components not turning off and on due to lack of voltage with this LDO linear regulator from STMicroelectronics. It has an overall accuracy of ±1 %. Its typical dropout voltage at current is 1.3@1.5A V. This voltage regulation device"s single output can produce a current up to 1.5 A. With a voltage no larger than 30 V, this will supply sufficient power to your circuit. With an adjustable output that has a voltage of 1.25 to 15 V, this is power management at its best. Users like the load regulation of 0.4% and line regulation of 0.2%. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. The maximum dropout voltage is 1.5@1.5A V. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
输出接口数 1
输出电压 1.25V ~ 15V
输出电流 1.5 A
跌落电压 1.3V @1.5A
输入电压Max 30 V
输出电压Max 28.5 V
输出电压Min 1.25 V
输出电流Max 1.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 ≤30 V
安装方式 Through Hole
引脚数 3
封装 TO-220-3
封装 TO-220-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LD1086VY ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
LD1086V-DG 意法半导体 | 完全替代 | LD1086VY和LD1086V-DG的区别 |
LD1086V 意法半导体 | 类似代替 | LD1086VY和LD1086V的区别 |
NCP1086T-ADJ 安森美 | 功能相似 | LD1086VY和NCP1086T-ADJ的区别 |
