LM2940 -N / LM2940C 1A低压降稳压器 LM2940-N/LM2940C 1A Low Dropout Regulator
Maintain a steady voltage level with this LDO linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.11@100mA|0.5@1A V. This voltage regulation device"s single output can produce a current up to 1Min A. By only needing an input voltage of 9.4 V with a maximum of 26 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 8 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 80mV and line regulation of 80mV. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 0.8@1A|0.15@100mA V.
输出接口数 1
输出电压 8 V
输出电流 1 A
静态电流 10 mA
输出电容类型 Tantalum
跌落电压 0.5V @1A,0.11V @100mA
调节输出数 1
输入电压Max 26 V
输入电压Min 9.4 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 9.4V ~ 26V
安装方式 Surface Mount

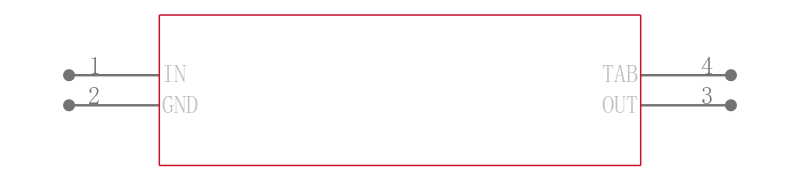

引脚数 4
封装 TO-263-4
封装 TO-263-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2940SX-8.0/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM2940SX-8.0 德州仪器 | 类似代替 | LM2940SX-8.0/NOPB和LM2940SX-8.0的区别 |
LM2940S-8.0 德州仪器 | 类似代替 | LM2940SX-8.0/NOPB和LM2940S-8.0的区别 |
LM2940S-8.0/NOPB 德州仪器 | 功能相似 | LM2940SX-8.0/NOPB和LM2940S-8.0/NOPB的区别 |
