LP38692SDX-ADJ/NOPB

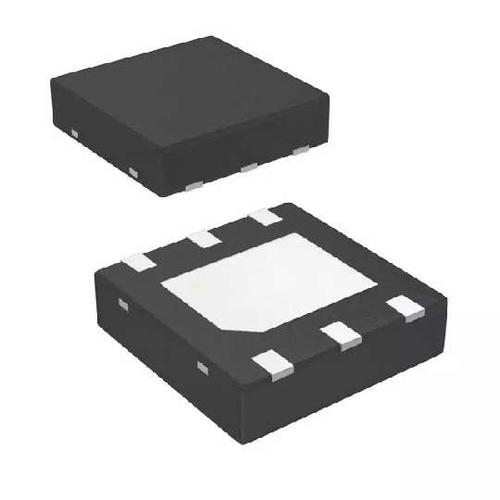

具有使能功能的 1A、10V、可调节低压降稳压器 6-WSON -40 to 125

The LP38690-ADJ and LP38692-ADJ low dropout CMOS linear regulators provide 2.5% precision reference voltage, extremely low dropout voltage 450 mV at 1-A load current, VOUT = 5 V and excellent AC performance utilizing ultralow equivalent series resistance ESR ceramic output capacitors.

The low thermal resistance of the WSON and SOT-223 packages allow the full operating current to be used even in high ambient temperature environments.

The use of a PMOS power transistor means that no DC base drive current is required to bias it allowing ground pin current to remain below 100 µA regardless of load current, input voltage, or operating temperature. Dropout Voltage: 450 mV typical at 1 A typical 5-V out Ground Pin Current: 55 µA typical at full loadAdjust Pin Voltage: 2.5% 25°C accuracy
